FBR FGP 50/2 EVO-2 - Burner Dimensions

TECHNICAL CHARACTERISTICS
070002_3_B
FGP 50/2 EVO-2
3
DIMENSIONS [MM]
TC - TL: Please see chapter "Flame tube length"

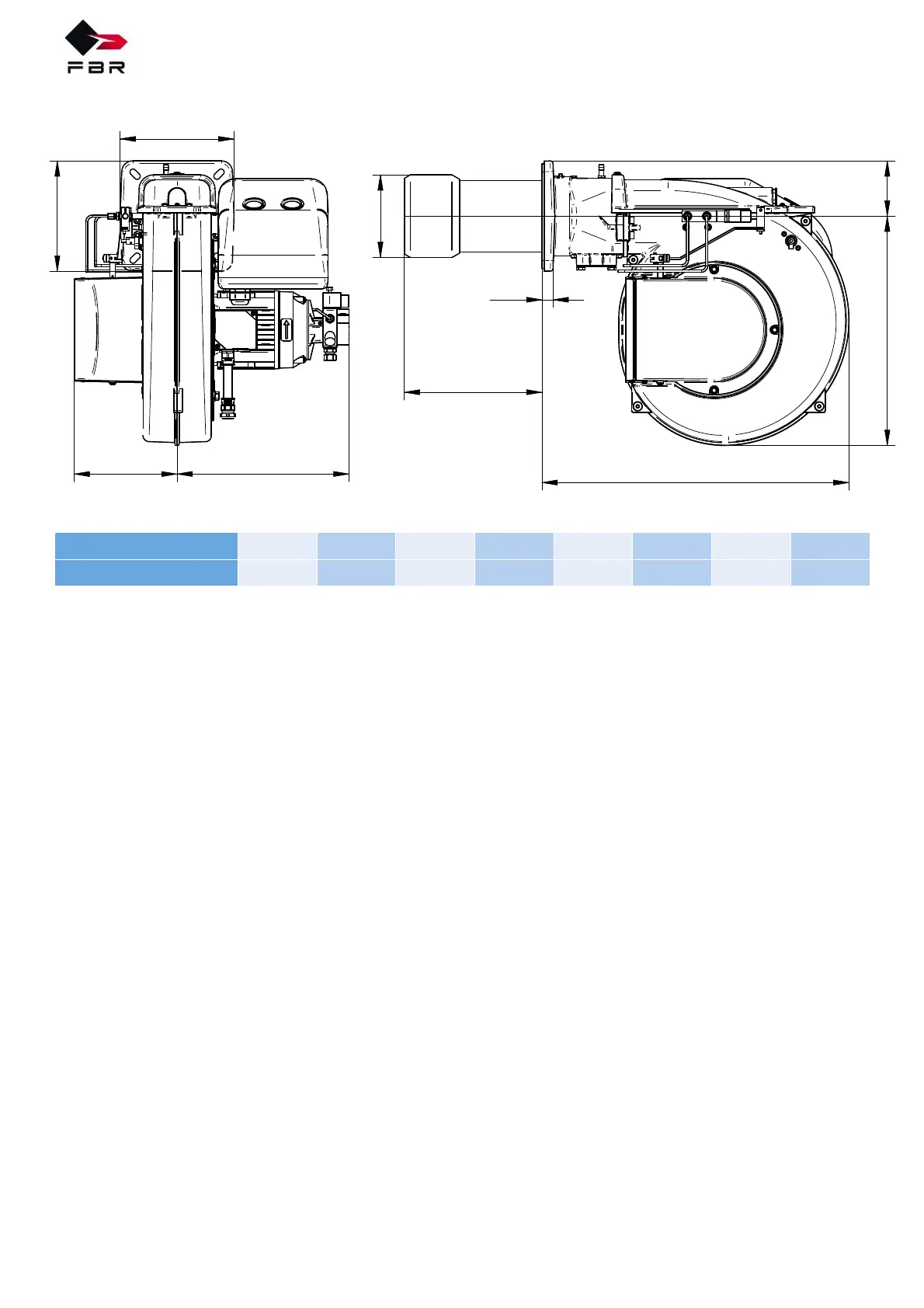

Fig. 2 Dimensions
MODEL
A B C D E F O P
FGP 50/2 EVO-2 187 314 150 558 417 100 207 200
O
P
A
B
C
TC - TL
20
D
E F
