TECHNICAL CHARACTERISTICS
070002_3_B
FGP 50/2 EVO-2
4
BURNER INSTALLATION

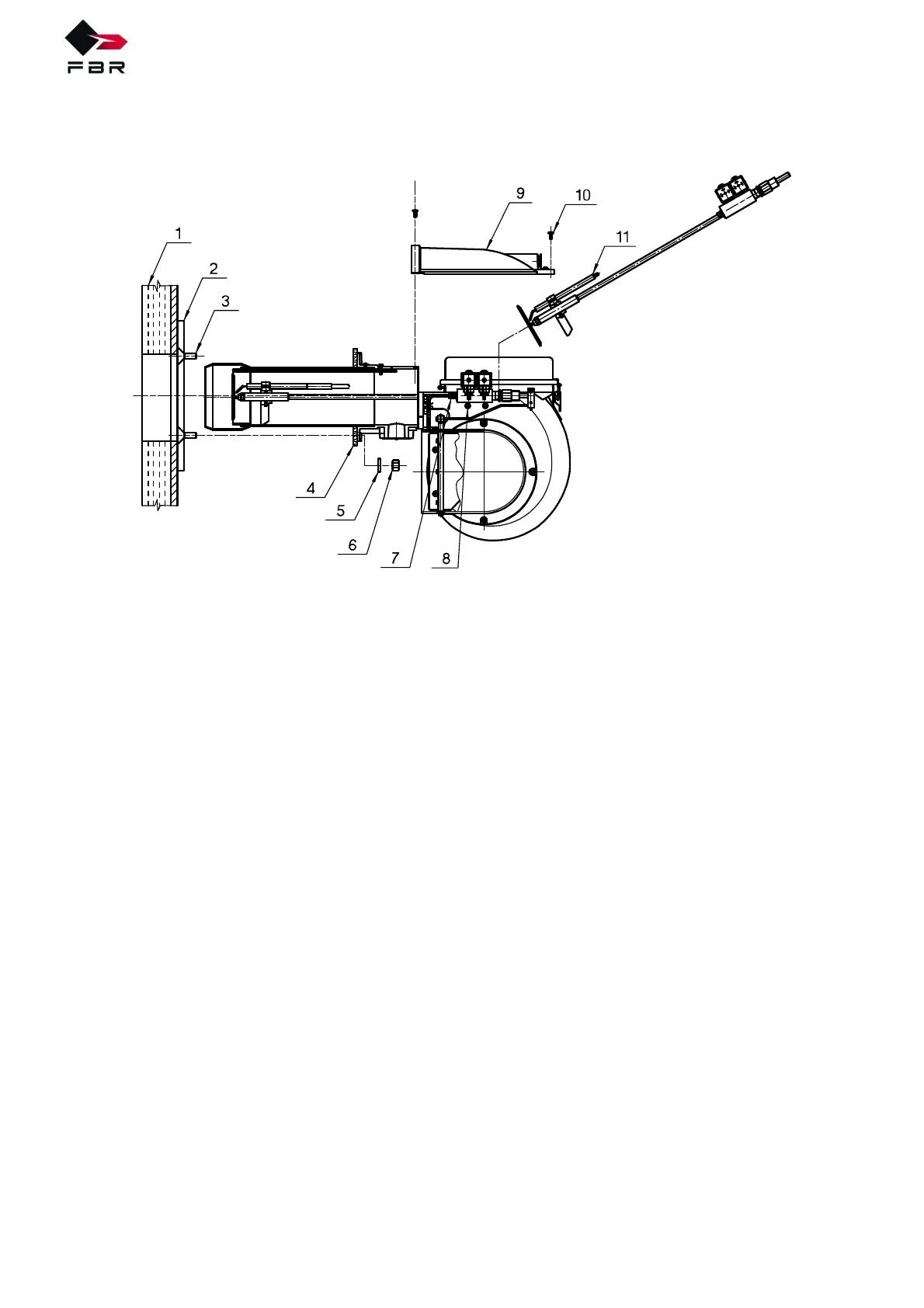

For the installation of the burner to the generator, follow to the diagram shown below:
Fig. 3 Burner installation
LEGEND
1) Generator 7) Pipe connection
2) Counterflange 8) Screw
3) Stud bolt 9) Burner's body cover
4) ISOMART gasket 10) Screw
5) Washer 11) Head group
6) Nut
