MAINTENANCE
070002_3_B
FGP 50/2 EVO-2
13
ELECTRODES POSITIONING

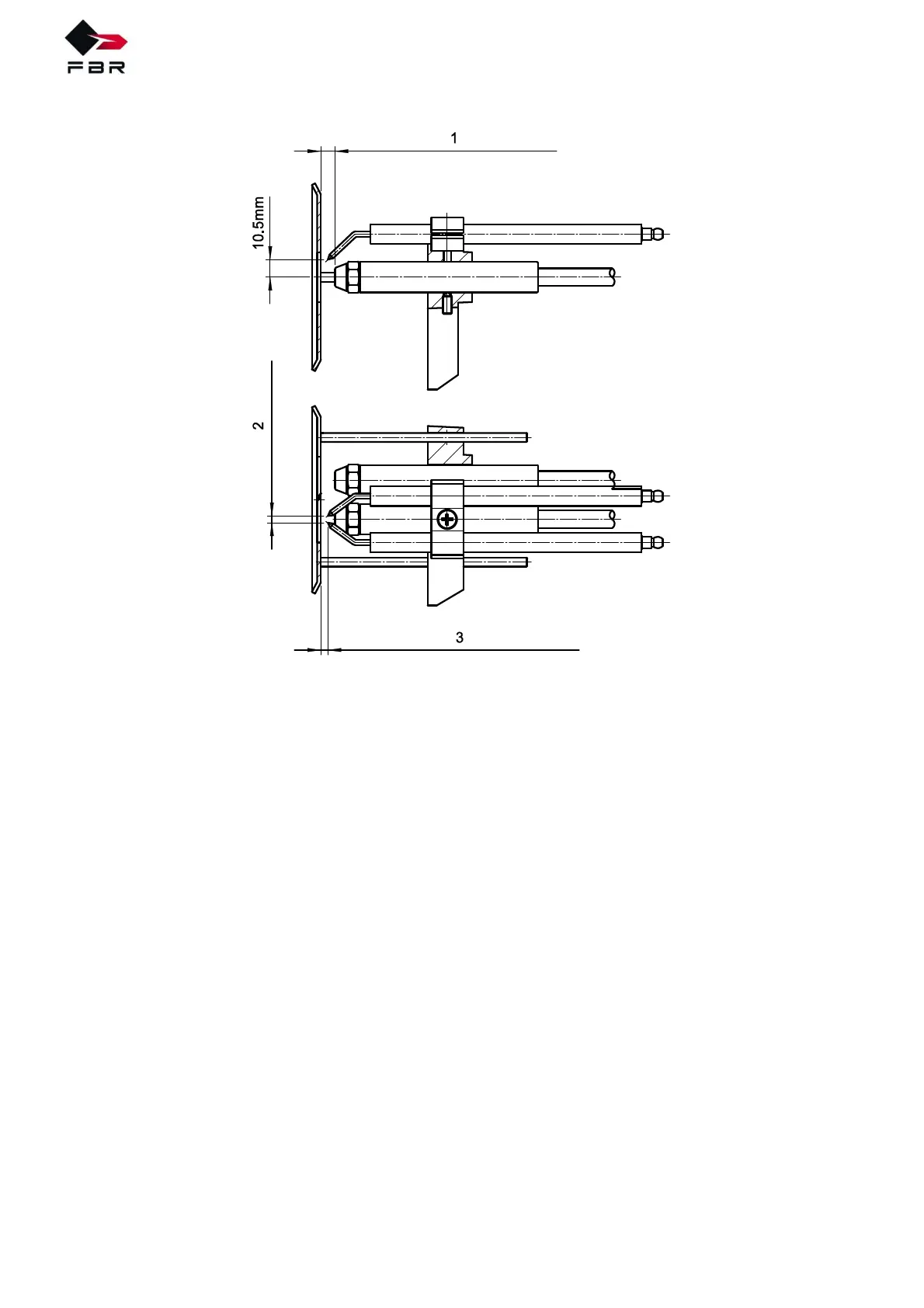

Fig. 13 Electrode positioning
LEGEND
1) Disc-Nozzle distance=8mm
2) Distance between the electrodes=4mm
3) Disc-Electrodes distance=4mm
