3) Rotate the hand wheel again to adjust and lock the clamp to the rim position.

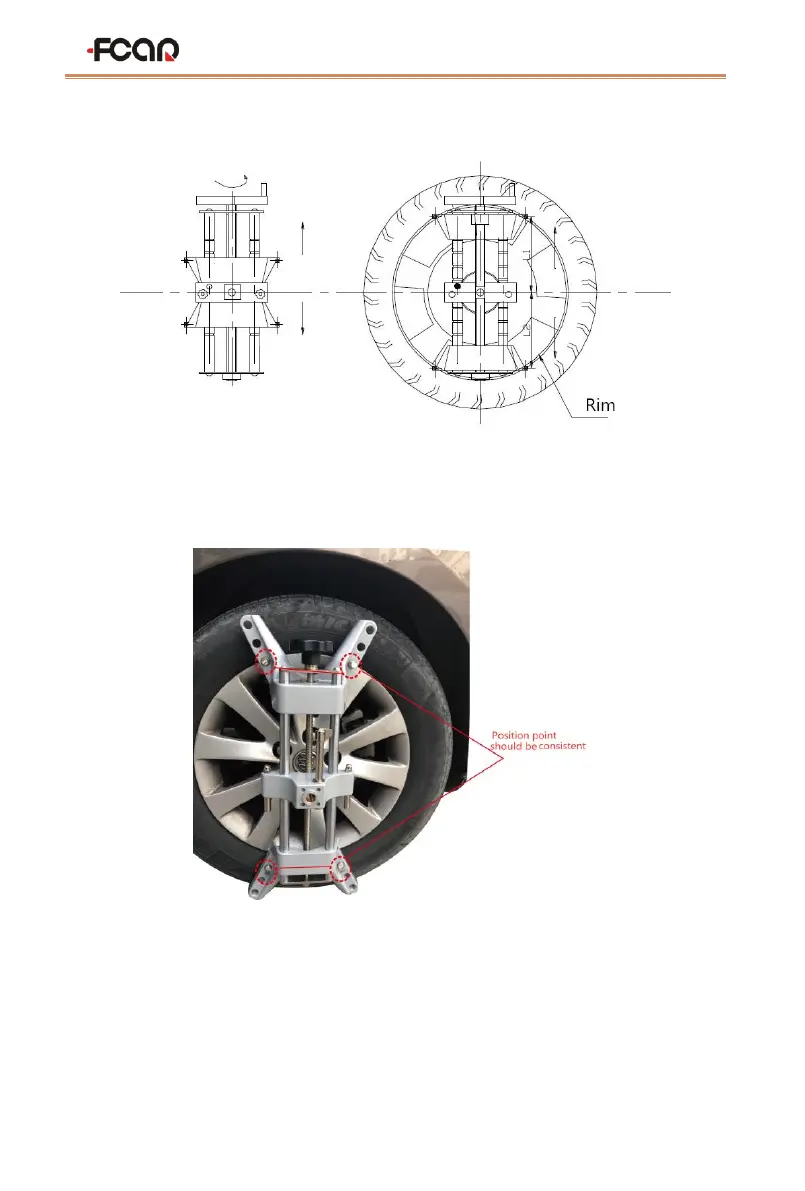

Figure 3.2-1 Fixture installation
The physical photo is shown below:
Note: When assembling the fixture, the claws should keep away from the lead
block on the rim, please make sure that the four claws are in full contact with the
rim.
Installed long and short target object as shown below:
