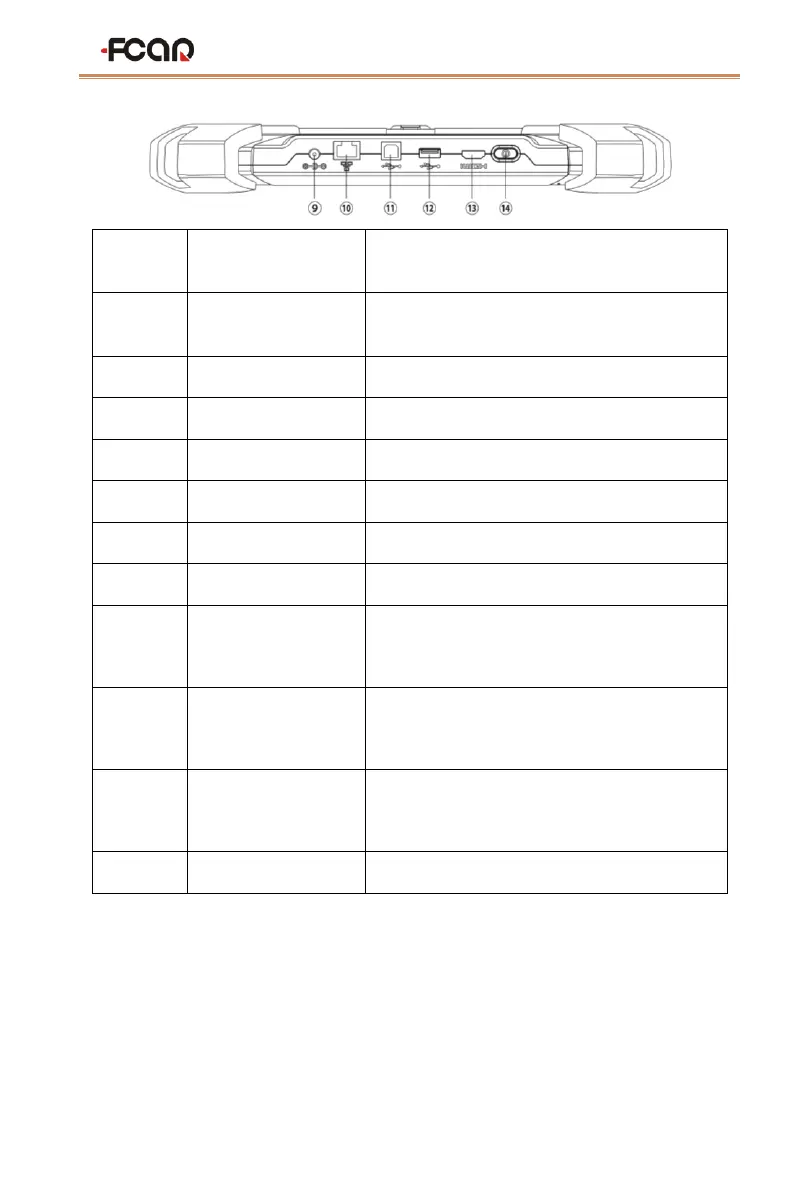

FCAR FD505 Wheel Alignment System User Manual
9
Serial
number
Name
Description
④
TF card slot / 3.5
headphone hole
Storage TF card location / headphone hole
⑤
Heat dissipation hole
For tablet cooling, avoid overheating
⑥
External horn hole
For external sound playback
⑦
Camera
For photography or video recording
⑧
Flash lamp
Used to provide light when light is weak
⑨
DC power port
For tablet charging or power supply
⑩
RJ45 interface
For network connection
⑪
USB interface （ B
shape）
Device interface: used to connect computers
and use tablets as USB drives
⑫
USB interface
Host interface: for tablets to connect to other
devices or to connect to USB drives
⑬
HDMI interface
Standard HDMI interface: used to connect
HDTV output
⑭
Power switch
For on / off tablets, or for locking screens
1.4 Product functions and features
⚫ High precision
5 high-resolution 2 million pixels ultra-clear industrial cameras, which can realize the
change of the wheel angle of the whole car. With higher accuracy, the compensation
