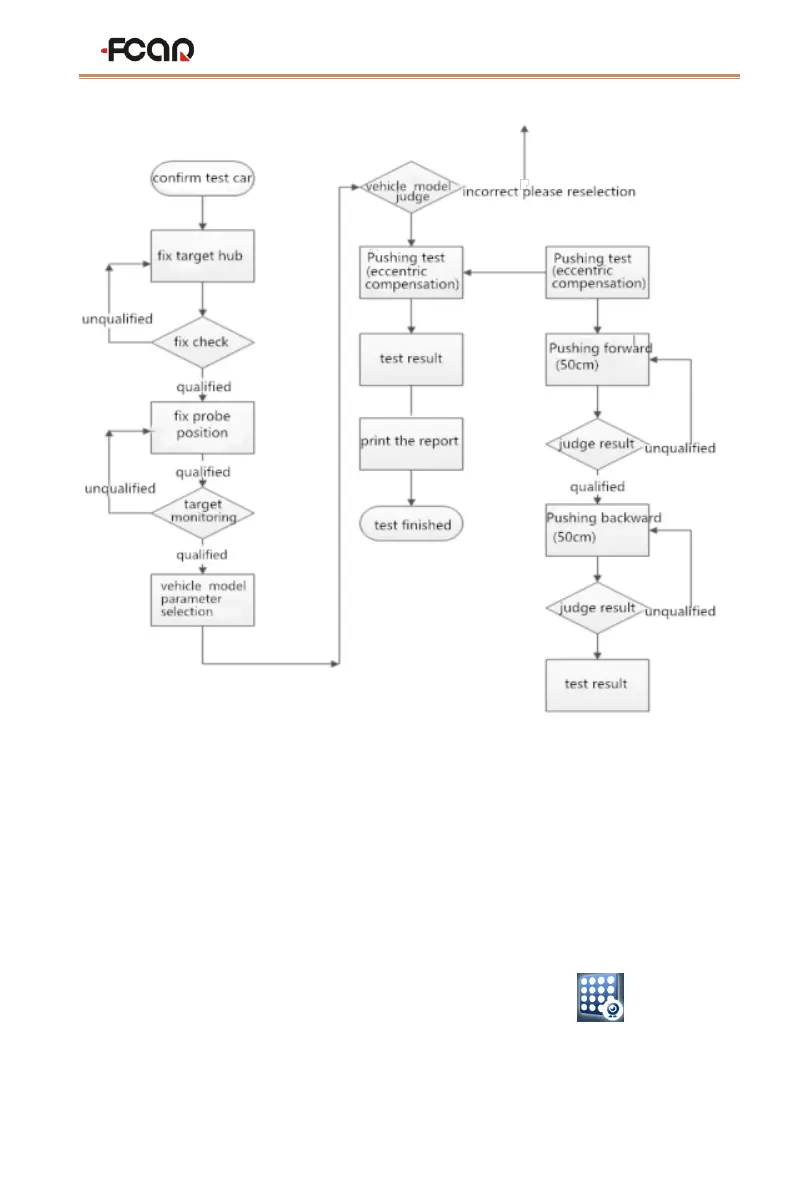

The two measurement modes of the FCAR 5D four-wheel aligner: ground mode and
lift mode to meet different measurement platforms or site limits for users. The following
two measurement modes are introduced separately.
4.1 Target monitoring
Before performing four-wheel positioning, no matter which measurement mode is
used, target monitoring is required first. Select Target Monitoring【 】 on the main
interface of the system, as shown in figure 4.1-1 and4.1-2, to ensure that all four targets
are clearly within the visible range of the camera.
