FCAR FD505 Wheel Alignment System User Manual
50

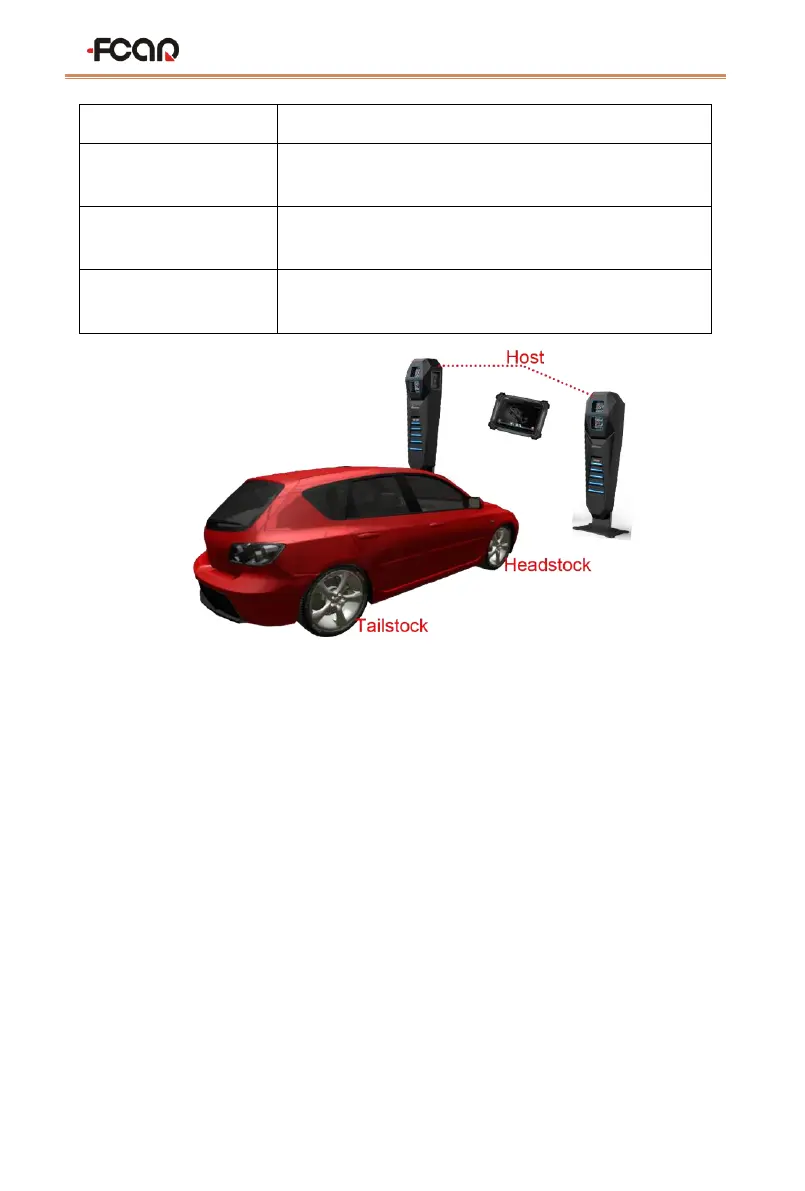

Position mode
Description
The front of the car
In the ground measurement mode, the front of the
vehicle is aligned with the four-wheel alignment host.
Body
In the lift measurement mode, the front of the vehicle is
aligned with the four-wheel alignment host.
The rear of the car
In the ground measurement mode, the tail is aligned with
the four-wheel alignment host
6.5 Set camera parameters
When the measuring environment is too dark or too bright, which is not conducive to
the target to provide the target graphics reflection, the camera exposure can be adjusted. In
general, if the targets graphics reflection is too dark, add the exposure value; if too bright,
reduce the exposure value.
The actual application fields of five cameras are shown in figures 6.1.3-1 and 6.1.3-2.
Please adjust the corresponding camera exposure according to the position of the camera.
