FCAR FD505 Wheel Alignment System User Manual
35
c. Target status: When there is an error in the target data acquisition, there will be a
corresponding target position adjustment prompt.
Note: The handbrake must be pulled and the foot brake must be held before the
caster measurement and shunting.
➢ How to perform the caster measurement
1) According to the interface prompt, first turn the steering wheel to the right (about 8
0
).
When the scroll bar is close to the edge, stop turning the steering wheel.

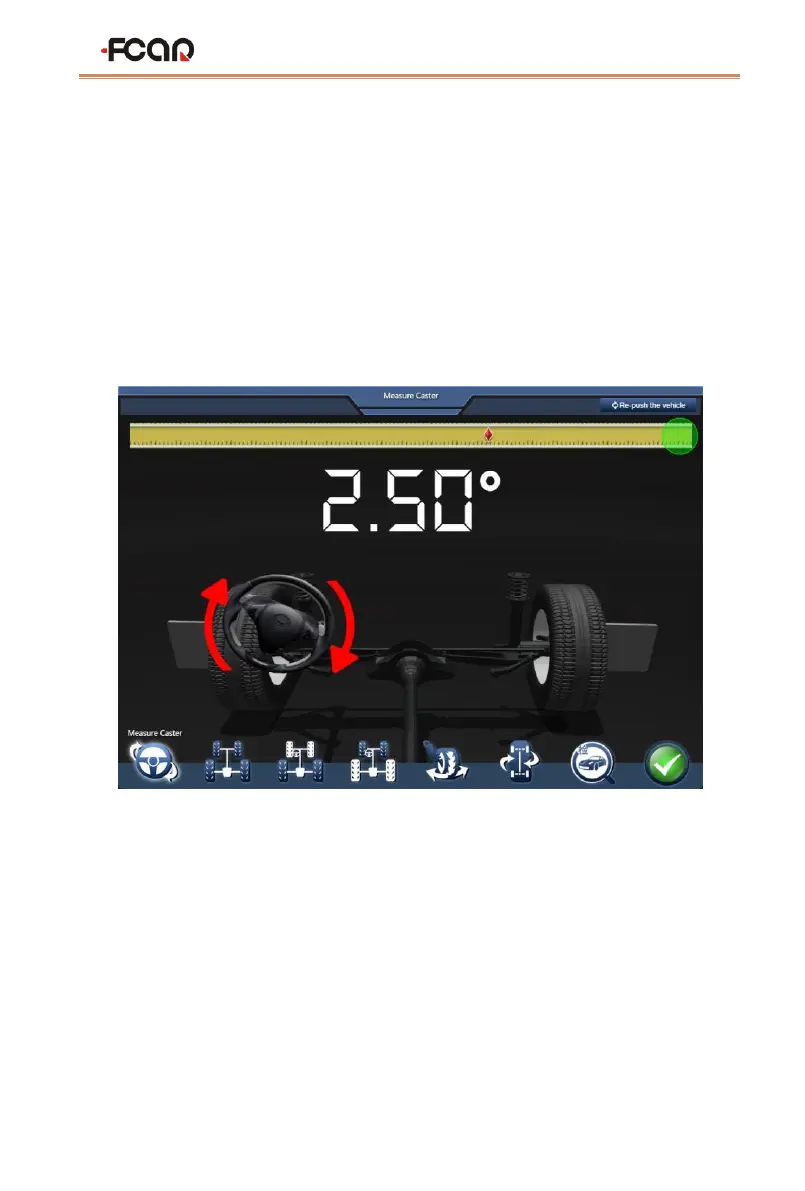

Figure 4.2.3-2 Right turn steering wheel
2) According to the interface prompt, turn the steering wheel to the left (about -8
0
).
When the scroll bar is close to the edge, stop the steering wheel
