FCAR FD505 Wheel Alignment System User Manual
38
with a steering wheel retainer.
1) In the four-wheel data interface, click [Lift up the vehicle] in the upper left corner,
the software automatically switches to the lift measurement mode, and the target
monitoring mode is also automatically switched.

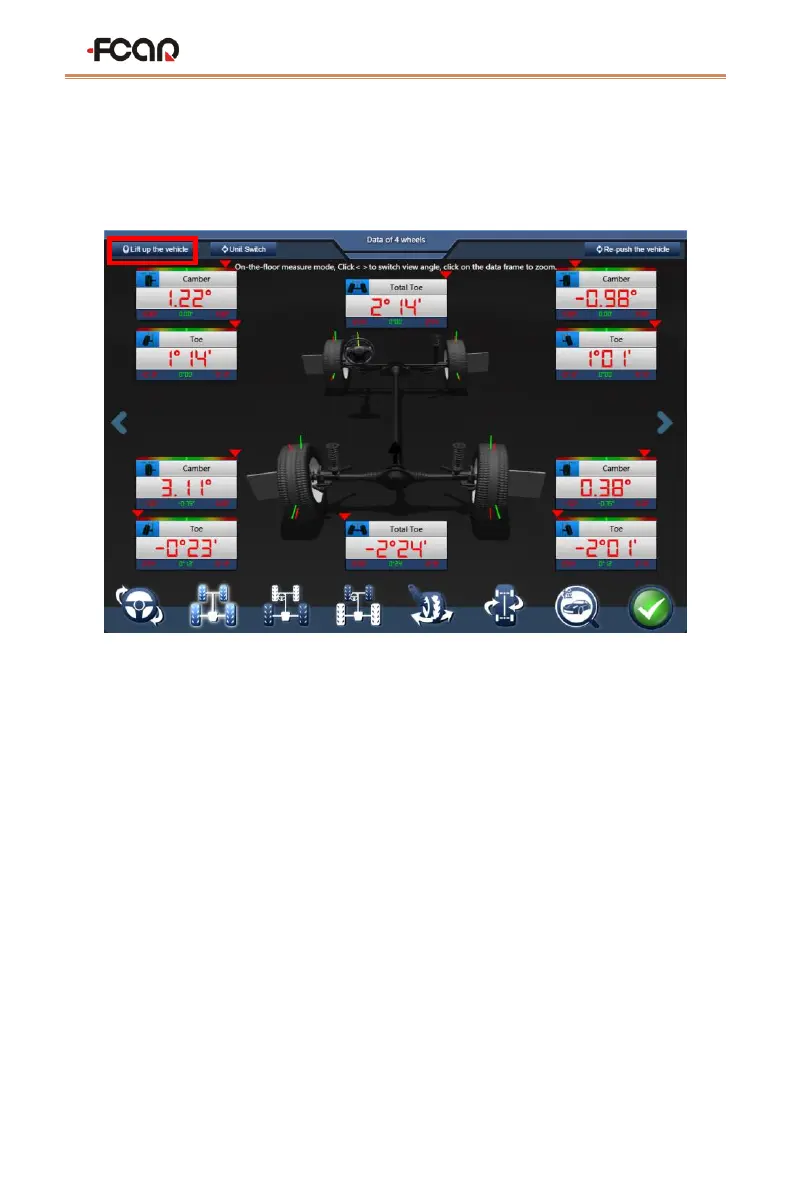

Figure 4.3-1 four-wheel data interface
2) When the software pops up the following prompt, please operate the lift and Lift the
body slowly
