FCAR FD505 Wheel Alignment System User Manual
59

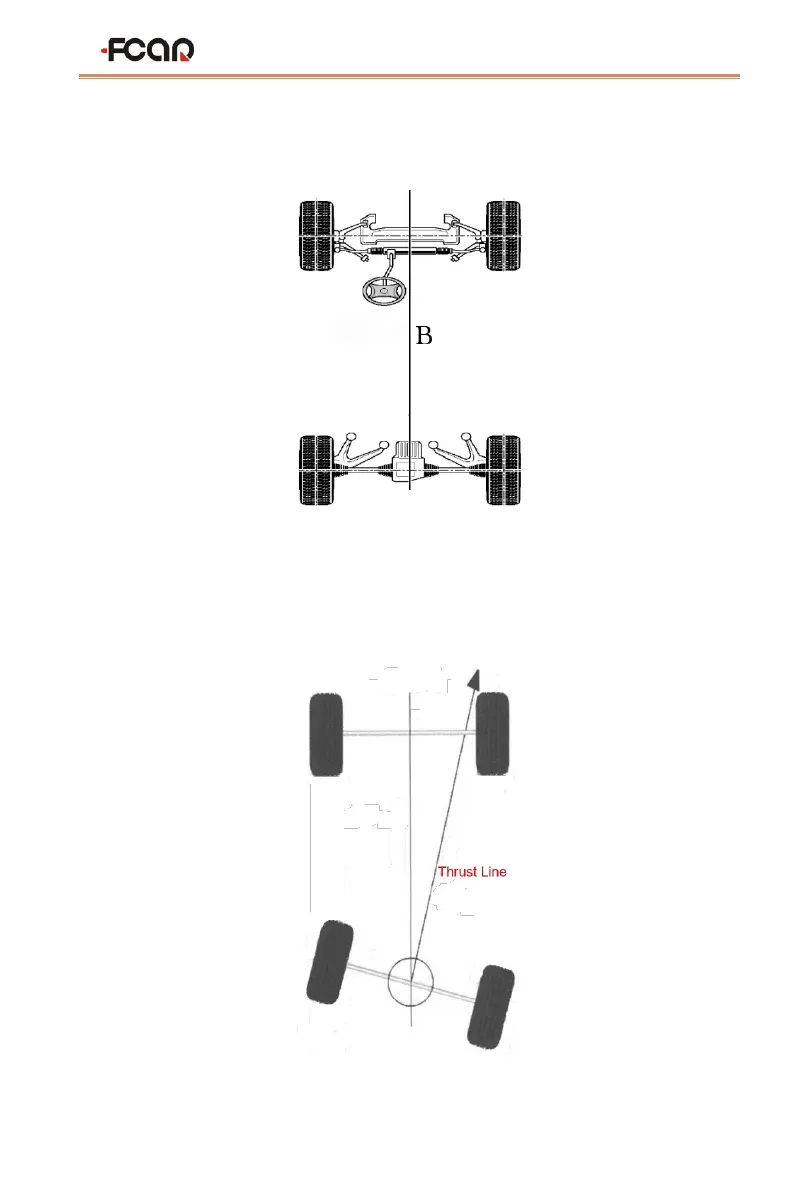

Refers to the line that bisects the front and rear axles of the vehicle. B-vehicle
centerline, also called the geometric centerline.
2.3 Thrust Line
The bisector of the toe angle of the vehicle rear wheel is called the thrust line, and the
angle between the thrust line and the center line of the vehicle is called the thrust angle.
