FCI 7100 SERIES User Manual

4.0 Programming/Operation Instructions

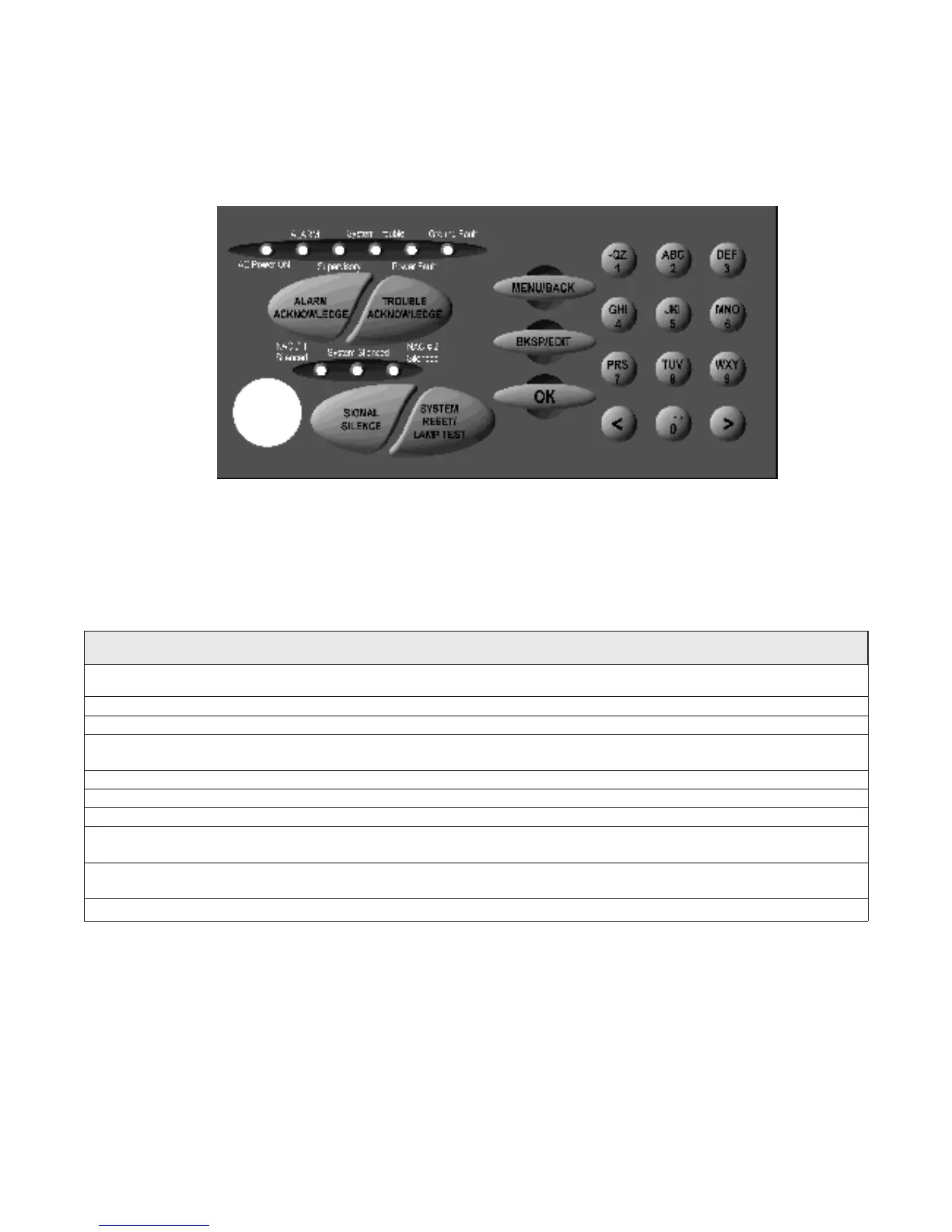

4.1 LED Indicators
Designation Description Comments
AC Power On (green) Lights to indicate presence of 120/240 VAC input.
Alarm (red) Lights when system is in alarm, flashes until alarm is acknowledged
Supervisory (yellow) Lights when supervisory condition exists, flashes until trouble
acknowledge is performed
System Trouble (yellow) Lights to indicate trouble condition, flashes until trouble is acknowledged.
Power Fault (yellow) Lights during a LOW or NO Battery condition
Ground Fault (yellow) Lights to indicate a ground on a field conductor
NAC 1Silenced (yellow) Lights to indicate that NAC Circuit has been silenced via
the Signal Silence Switch (if programmed as silenceable)
NAC 2 Silenced (yellow) Lights to indicate that NAC Circuit has been silenced via
the Signal Silence Switch (if programmed as silenceable)
System Silenced (yellow) Lights when a System Silence has been performed.
Table 6
9000-0447 23 of 43
Technical Manuals Online! - http://www.tech-man.com

FCI 7100 SERIES Specifications

General

Series	7100 SERIES
Manufacturer	FCI
Sensor Type	Photoelectric
Operating Temperature Range	32°F to 120°F (0°C to 49°C)
Type	Smoke Alarm
Operating Temperature	32°F to 120°F (0°C to 49°C)
Alarm Sound Level	85dB at 10 feet
Interconnect Capability	Yes
Dimensions	2 inches
Humidity	10% to 95% non-condensing
Humidity Range	10% to 95% non-condensing
