3
Field Wire Panel Is the Right Side Panel Located Under the EcoVFC Cover

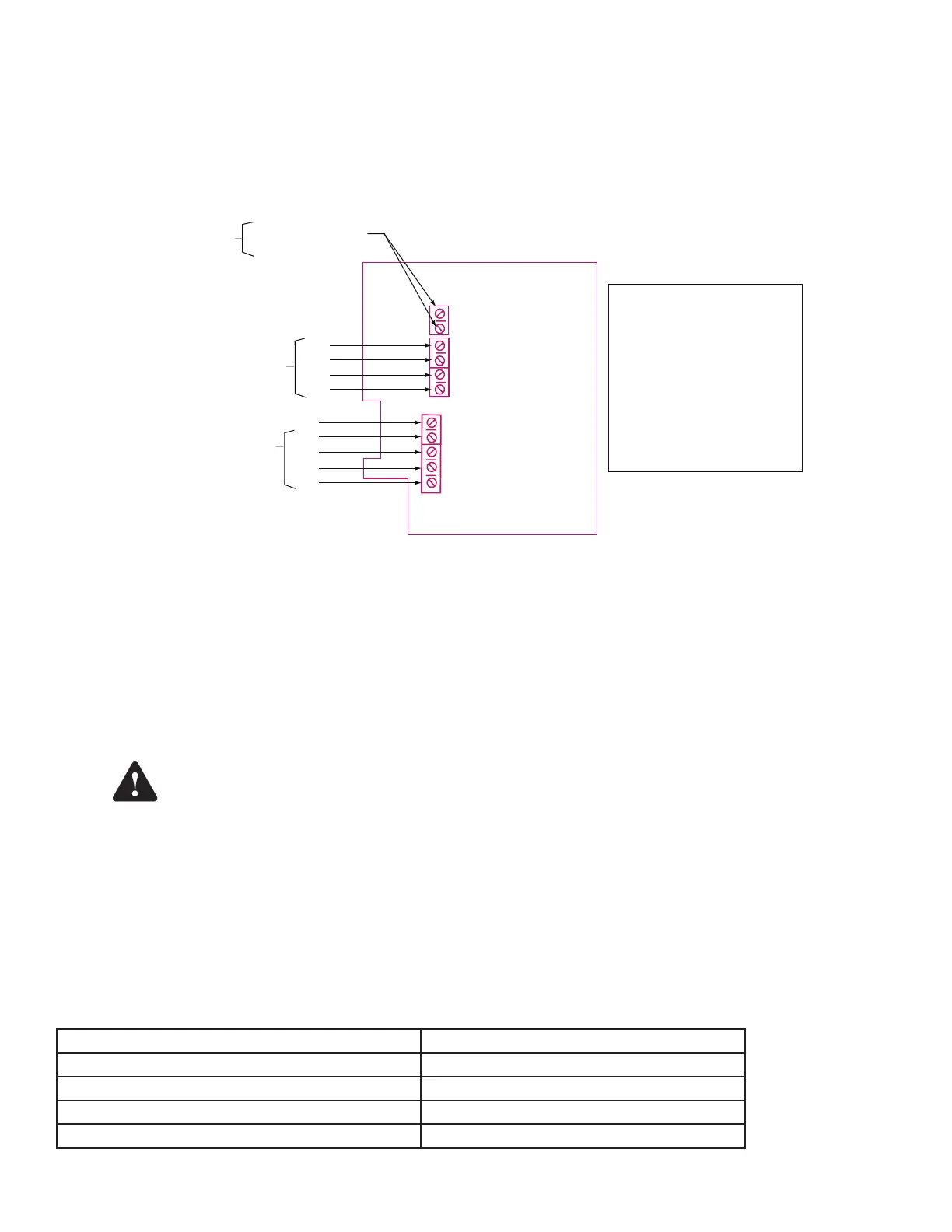

Figure 1: EcoVFC Wiring
Hook Terminals: Voltage signal from the dispensers to turn pump on. Requires a signal wire and a neutral.
No polarity requirements at the Hook Terminal.
Pump Motor Terminals: Labeled GND, BLK,ORG, RED. Connect wires that go to the submersible pump at
these terminals. If color codes are not matched at the submersible the motor may
run in reverse.
Input Power Terminals: Labeled GND, L3, L2, L1. Supplies power for EcoVFC and the submersible pump.
EcoVFC accomodates type TT or TN grounding congurations.
Apply power to the controller BEFORE allowing hook signal input. (There should be NO hook
signal present when applying power to the controller).
Note: Connect wires accurately. Connecting power wires to any other terminals will cause irreparable damage
to the EcoVFC controller.
Note: The EcoVFC can only be used with FE Petro Pump base models IST, IST VS4, STP VS4, STP VS2, PMA
VS4, or PMA VS2. The EcoVFC is not compatible with competitive makes of variable speed models. The
EcoVFC is compatible with the IST-VFC for communication in Master / Slave congurations only if the
EcoVFC has software revision 1.18 or higher.
Note: This drive requires circuit breakers rated 360-440 volts, 40 Ampere maximum for branch circuit short
circuit protection.
Environment
Ambient Operating Temperature 4ºC - 35ºC
Humidity 93% RH
Storage temperature -20ºC to 65ºC
Pollution Degree 2
Altitude 2,000 Meters above sea level maximum
Do not install in hazardous location
Use only with FE Petro PMA models VS2 and VS4
Use 90ºC copper wire rated 600v minimum
Tighten line and motor terminals to 1 Nm (8 in-lbs)
EcoVFC Electrical Specifications:
EcoVFC Incoming Line Draw:
Three Phase Input = 20A Max.
PMA VS4 Motor Draw = 15A Max.
PMA VS4 Lead-to-Lead
Winding resistance = 1.2 Ohms ± 1 Ohm
PMA VS2 Motor Draw = 7A Max.
PMA VS2 Lead-to-Lead
Winding resistance = 2.5 Ohms ± 1 Ohm
Notice: Incoming power must be three-
phase, including a neutral connection
Hook Terminals
From Dispenser
Pump Motor Terminals
To STP
110 VAC Supply & Neutral
or
240 VAC Supply & Return
GND
BLK
ORG
RED
GND
L1
L2
L3
N
Input Power Terminals
360-440 VAC
50 or 60 Hz 3-Phase
Warning
