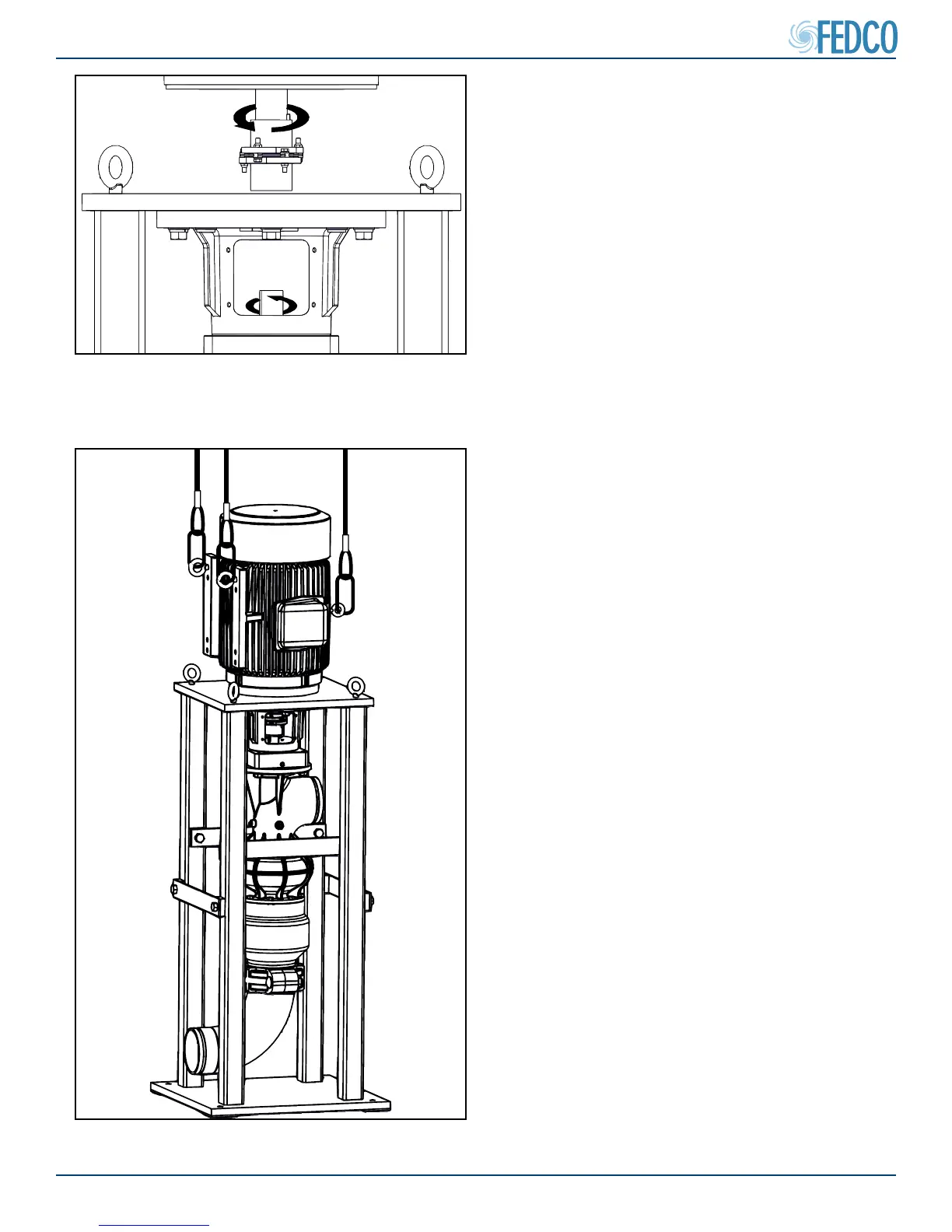

Figure 45 - Lower Motor Onto Base
13. Lower the motor into the coupling and pilot
the pump shaft into the ex coupling. Pilot
the pump base bore and align the motor
mounting holes with the holes in the pump
base.
Pump Assembly Continued
Figure 44 - Rotate Shafts For Coupling
Alignment
NOTES: Pump shaft key should still be in-
stalled from the ex coupling check.
12. Rotate both shafts until the pump shaft
key and the exible coupling keyway are
aligned.
