14. Before removing hook from fuse pull ring, push firmly to assure
that the fuse assembly is completely seated in the hinge, closed
and latched.
15. Release the locking bracket that holds the fuse mounting down
against the lower door stile. See Figure 26.
16. Secure the shotgun clamp stick to the fuse mounting interlock
lever. Then raise the fuse panel and latch it closed.
13. Re-install the hook of the shotgun clamp stick onto the pull
ring of the fuse assembly. Then lift and place fuse assembly
into fuse mounting in the horizontal position, in the reverse of
Figures 27, 28, and 29. Alternately, if user’s standard operating
procedures permit, the fuse assembly may be placed in the
fuse mounting using an insulating-gloved hand because in
the lowered position the fuse mounting is isolated at both
ends from high voltage. See Figure 31.

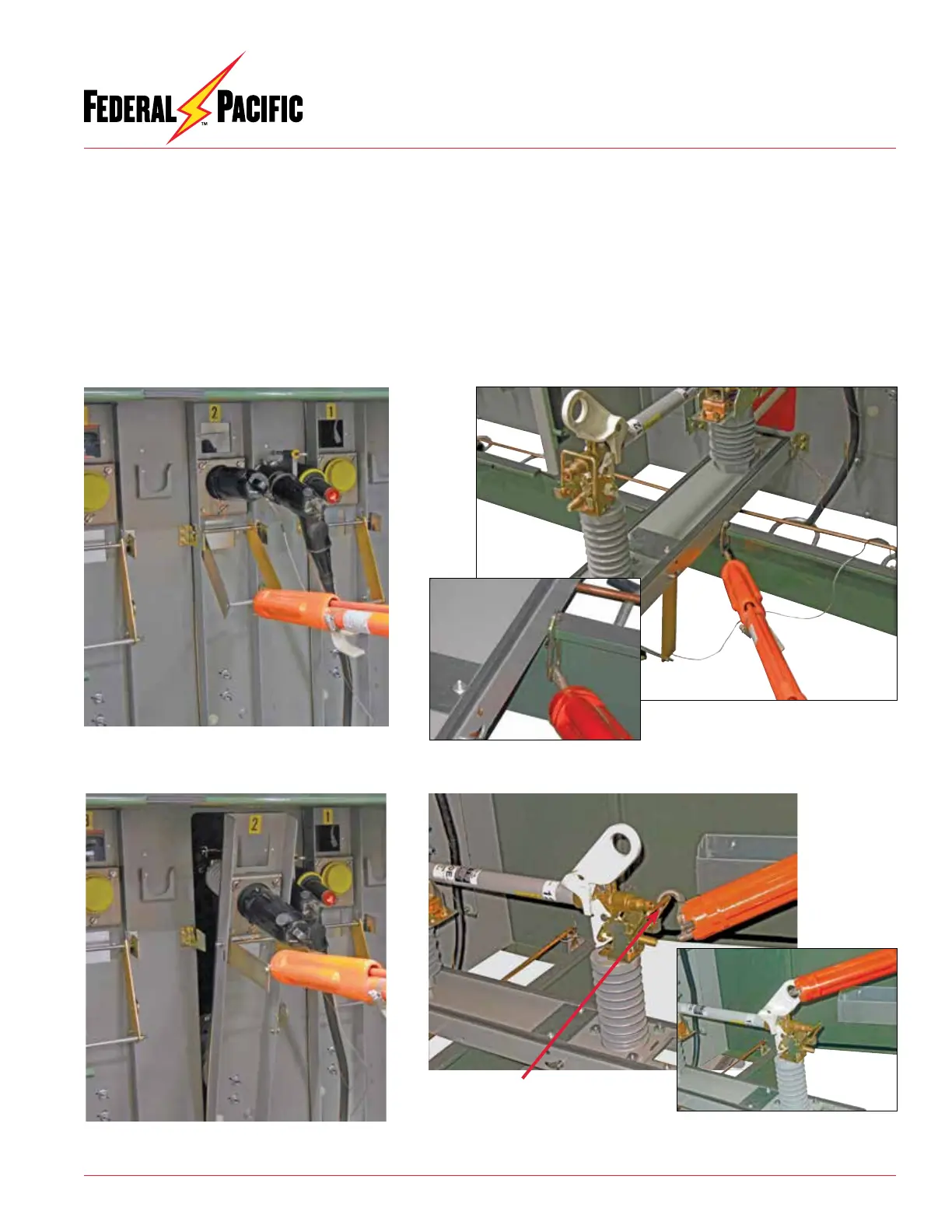

Figure 26. Locking bracket being set in
place to secure fuse mounting against door
rail.
Figure 24. Interlock lever being raised to unlocked
position (or lowered to locked position).
Figure 25. Fuse mounting being lowered to access
fuse (or raised to reinstall fuse).
Figure 27. To release fuse latch, lower fuse-retainer bail. Secure shotgun clamp
stick on fuse pull ring. Pull up on the fuse pull ring to release the fuse. Remove
shotgun stick from fuse pull ring.
Fuse-retainer bail
