10 FY6900 Series User’s Manual

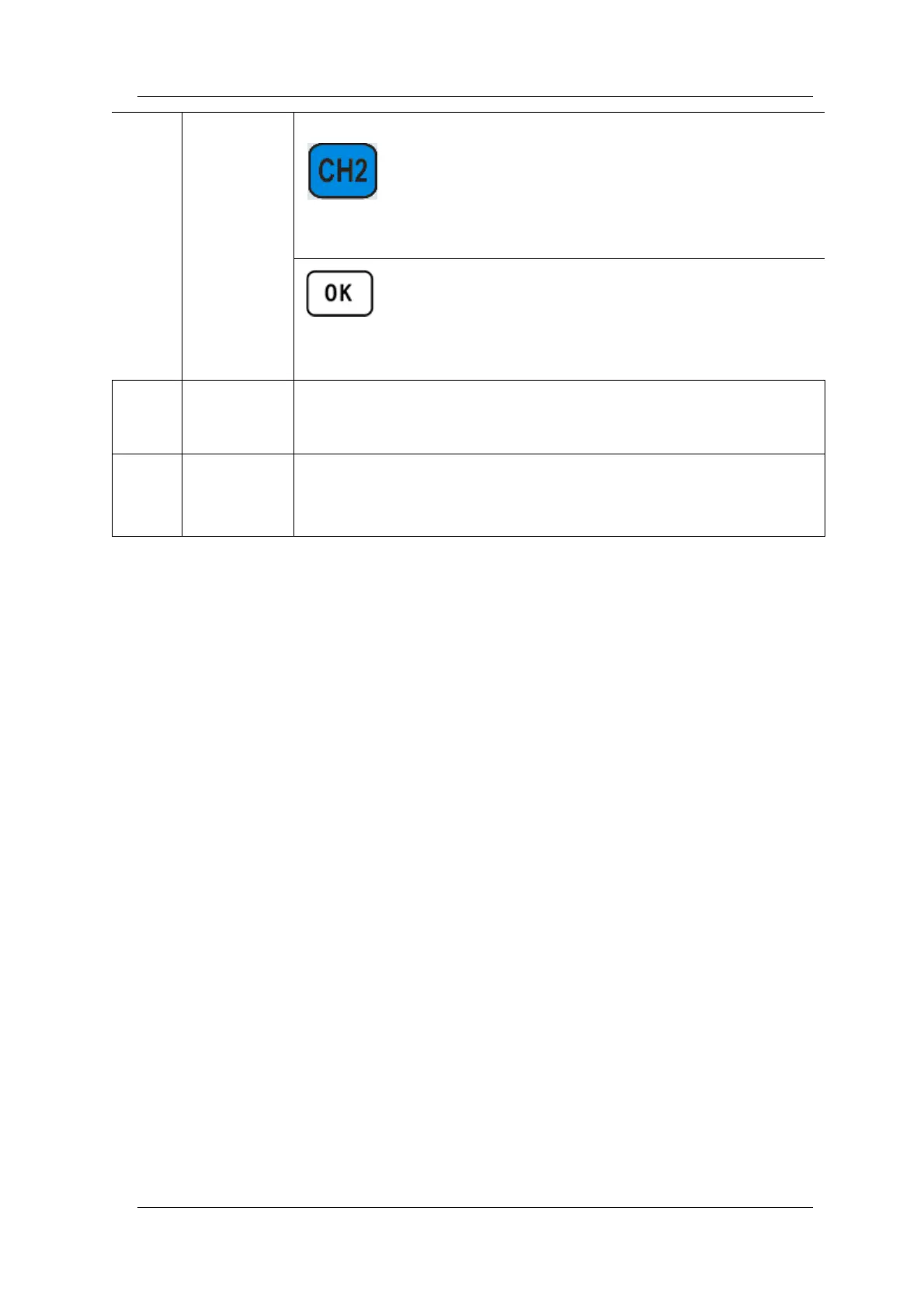

Control CH2 output. Press it to switch to CH2 parameter
setting interface.
— Press it to turn on CH2 output with current
configuration. The indicator will illuminate.
— Press it again to turn off CH2 output and the indicator
will extinguish.
—Confirm key
—When editing the frequency parameters, the unit of
frequency can be changed by pressing the knob down.
—When scanning the interface, press down the knob to
start/stop the scanning state.
9
CH2 channel
output
connector
CH2 connector, output impedance is 50Ω.
When CH2 channel activates (indicator illuminates), CH2 outputs
signal with parameters set.
10
AC coupling
measuring
terminal
BNC connector, input impedance 100Ω. For inputting signal of meter or
counter.
