8.1. Connections

8.1.1. LSA Connection X2 for TCP/IP Interface

The connection of the ID MAX50.10-E with the Ethernet and PoE power supply will carried out by a

LSA terminal connector X2 on a connection board which will snapped into the housing.

For applying the CAT5 cable on to the LSA connector a special LSA punch down tool must be

used.

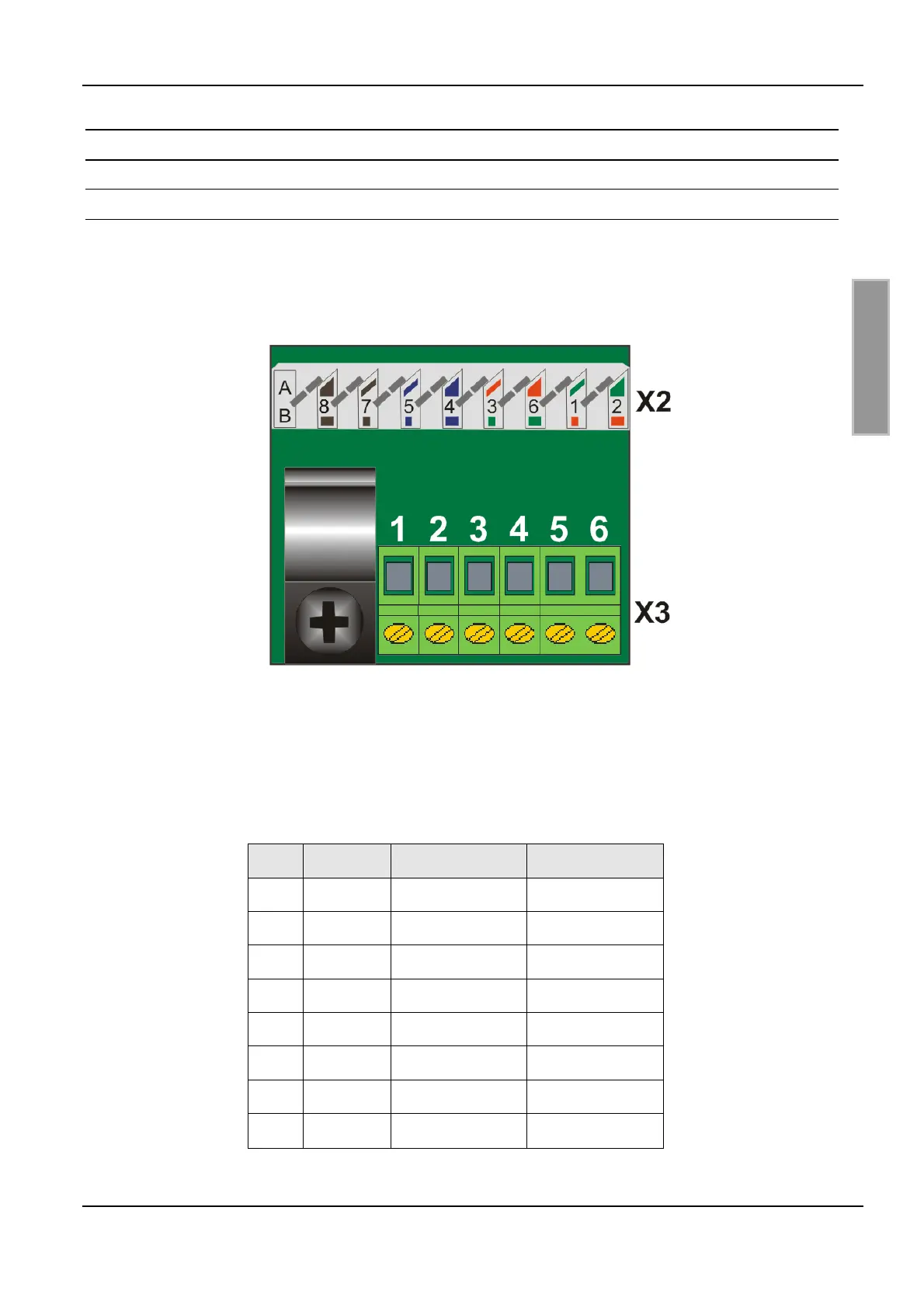

Fig. 7: ID MAX50.10-E connection board with LSA terminal X2

There are existing two different ways for the connection of a CAT5 cable, EIA/TIA T568A and

EIA/TIA T568B. The typical color coding is shown in the table below.

X2 Signal EIA/TIA T568A EIA/TIA T568B

1 Tx D1+ Green striped Orange Striped

2 Tx D1- Green Orange

3 Rx D2+ Orange Striped Green striped

4 BI D3+ Blue Blue

5 BI D3- Blue Striped Blue Striped

6 Rx D2- Orange Green

7 BI D4+ Brown Striped Brown Striped

8 BI D4-

Brown Brown
