Fein BOP 6 - Page 10

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 10 of 65

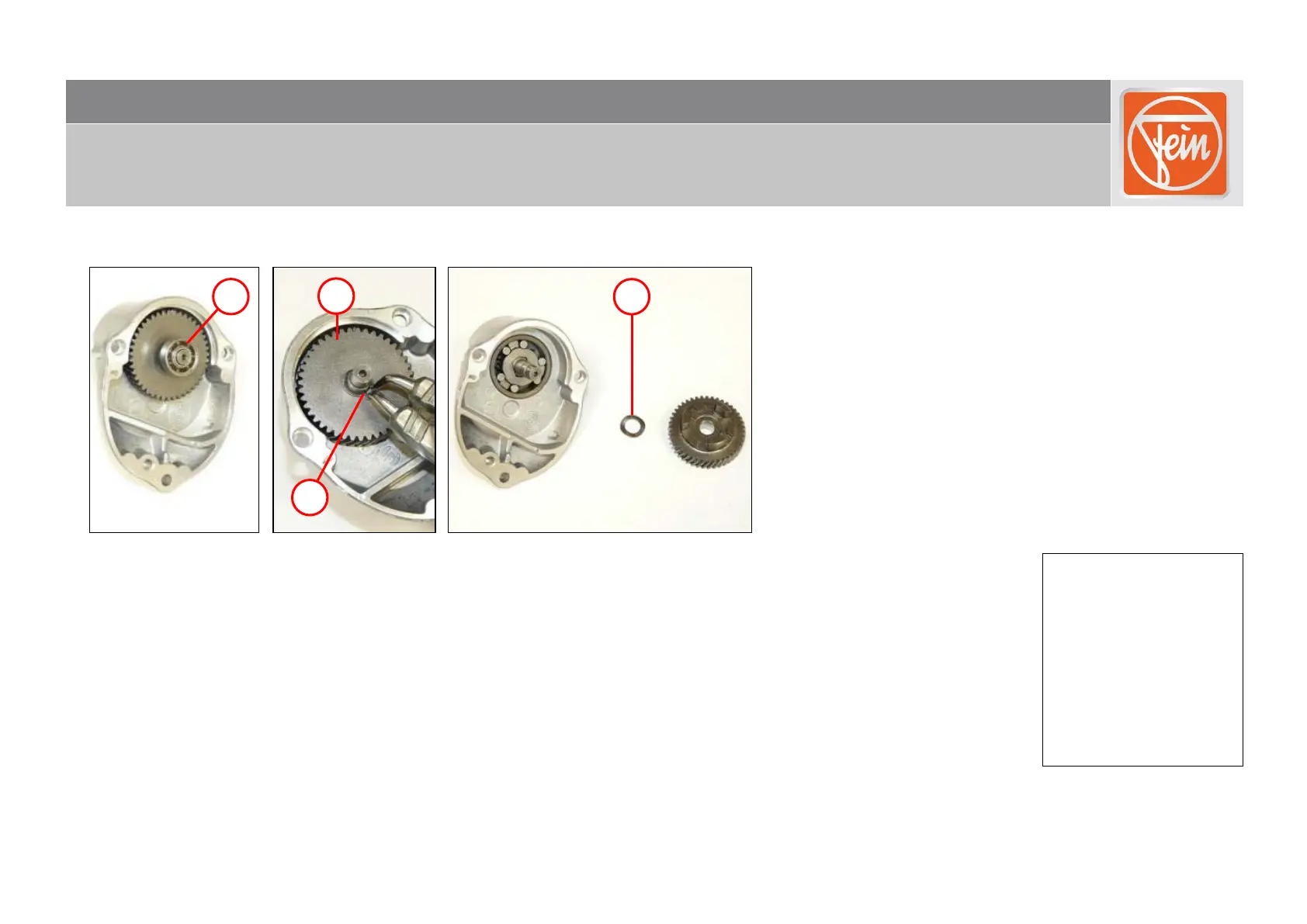

Removing the gearbox housing [applies to: BOP 6 (A)]
1. Pull off the grooved ball bearing (1).
2. Remove the circlip (2).
3. Remove the gear-wheel (3).
4. Remove the spring washer (4).
Tools:
- Drawing-off socket cap
- Chuck cone, 15 mm
- Circlip pliers
1
2
3
4
