BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 11 of 65

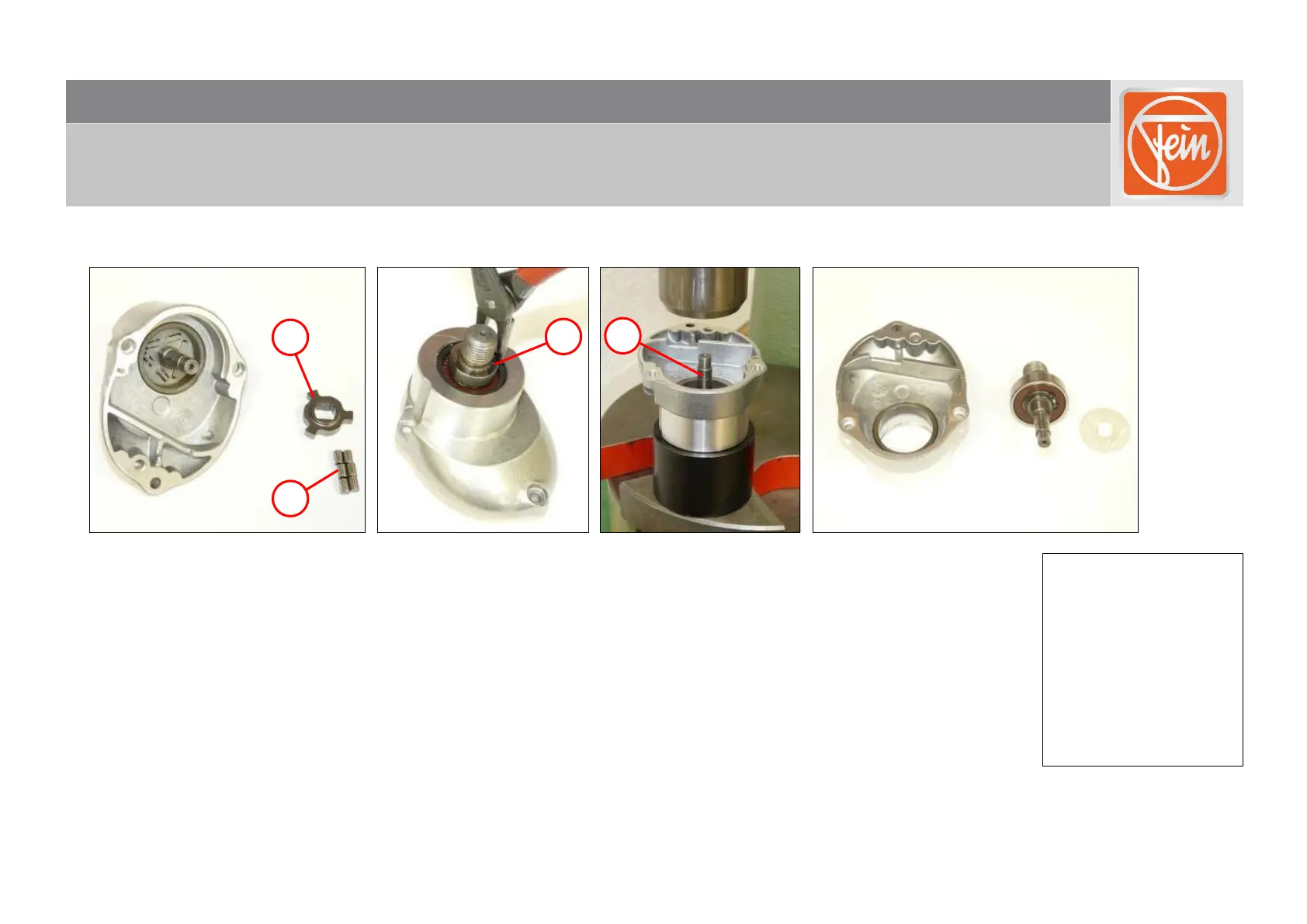

Removing the gearbox housing [applies to: BOP 6 (A)]
1. Remove the clutch ring (1).
2. Remove the six rollers (2).
3. Remove the circlip (3).
4. Press out the shaft (4).
Tools:
- Arbor press
- Sleeve
33 mm inner diameter
43 mm outer diameter
3
4
1
2
