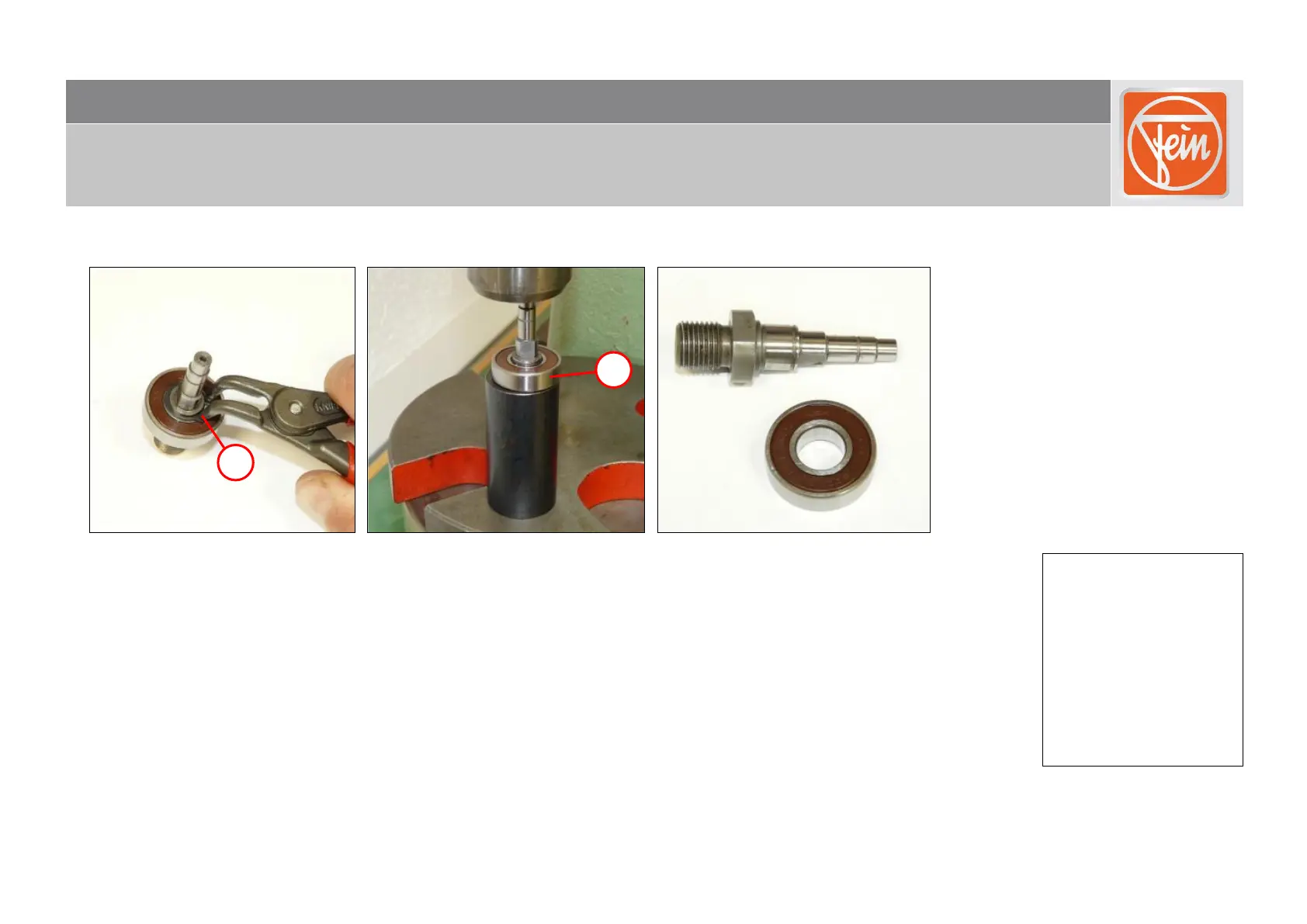

Removing the gearbox housing [applies to: BOP 6 (A)]
1. Remove the circlip (1).
2. Press down on the grooved ball bearing (2).
Tools:
- Circlip pliers
- Arbor press
- Sleeve
13 mm inner diameter
17 mm outer diameter
2
1
