Removing the gearbox housing [applies to: BOP 10 (A)]

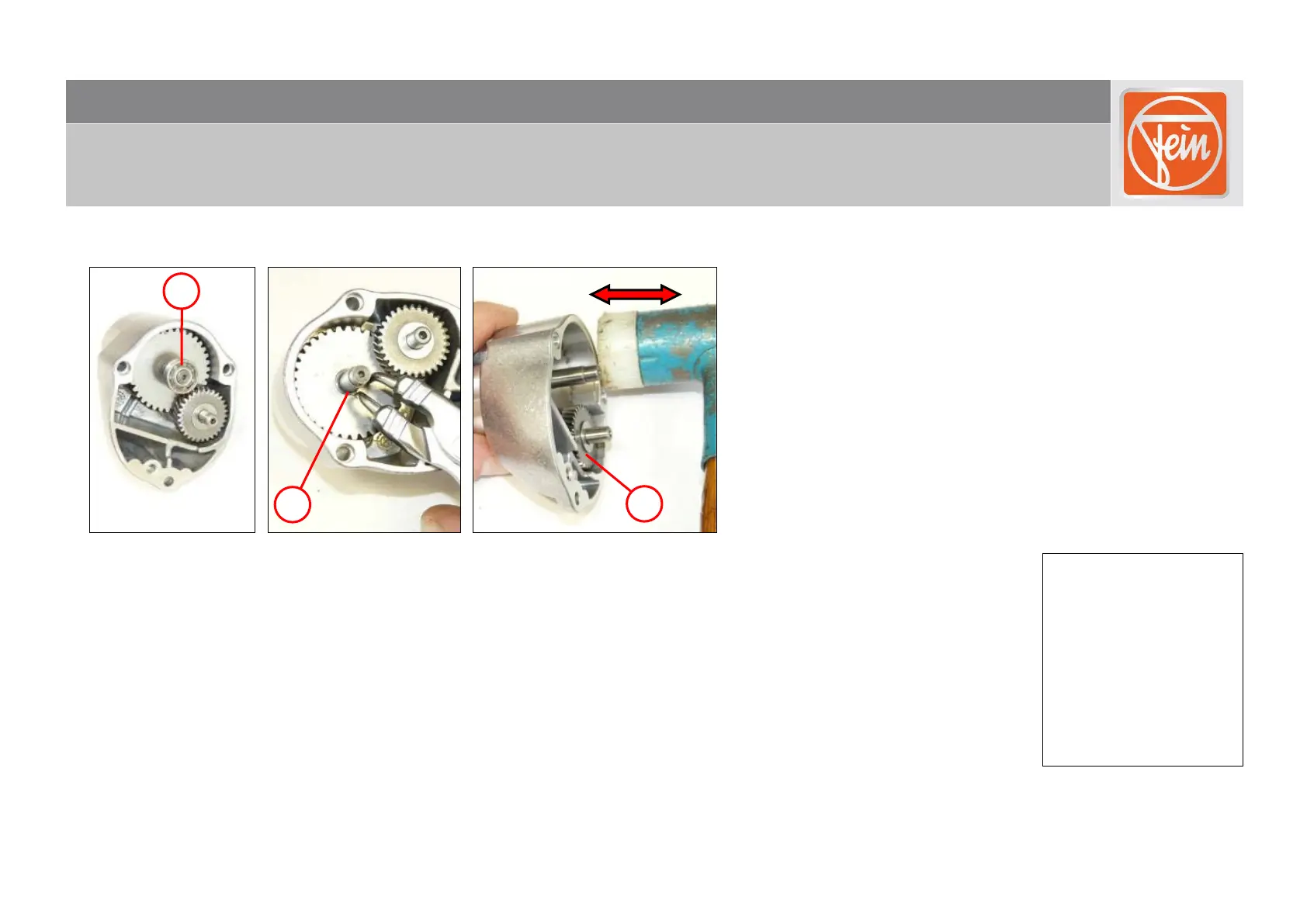

1. Pull off the grooved ball bearing (1).
2. Remove the circlip (2).
3. Remove the gear-wheel (3).
Tools:
- Drawing-off socket cap
- Chuck cone, 15 mm
- Circlip pliers
- Plastic hammer
1
2
3
