Fein BOP 6 - Page 14

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 14 of 65

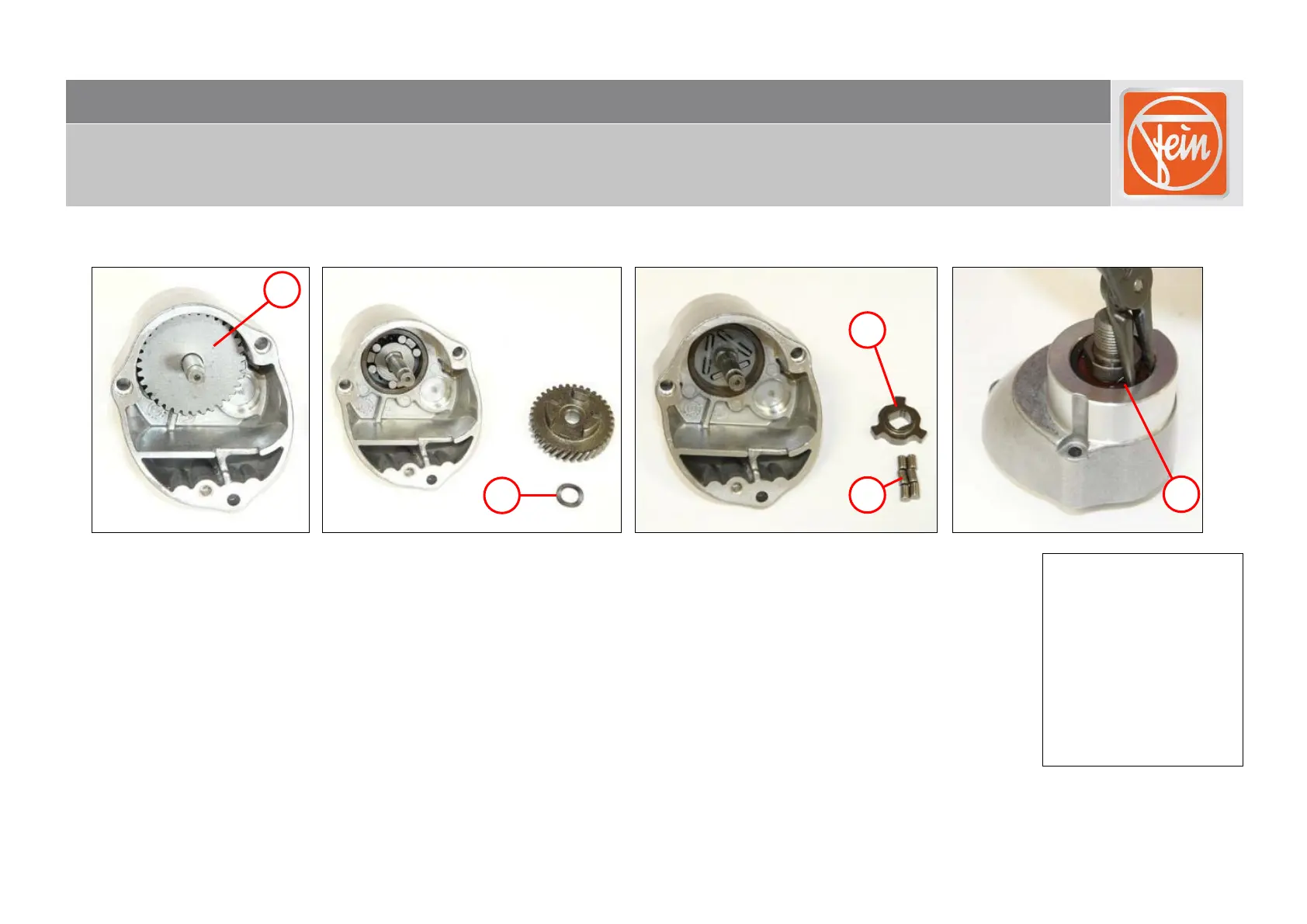

Removing the gearbox housing [applies to: BOP 10 (A)]
1. Remove the gear-wheel (1).
2. Remove spring washer (2).
3. Pull off the clutch ring (3).
4. Remove the six rollers (4).
5. Remove the circlip (5).
Tools:
- Circlip pliers
2
1
3
5
4
