Fein BOP 6 - Page 15

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 15 of 65

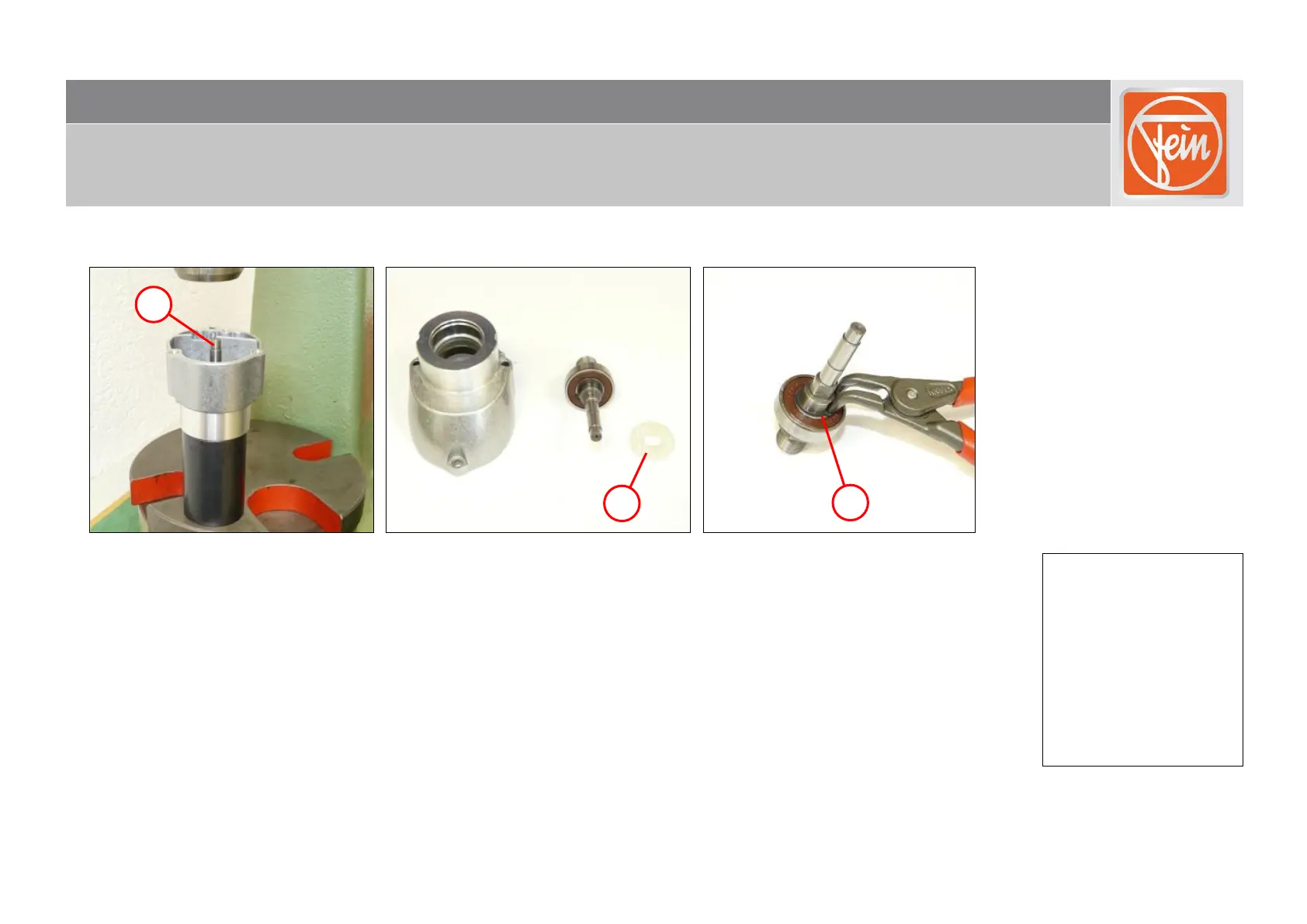

Removing the gearbox housing [applies to: BOP 10 (A)]
1. Press out the shaft (1).
2. Remove the disc (2).
3. Remove the circlip (3).
Tools:
- Arbor press
- Sleeve
30 mm inner diameter
40 mm outer diameter
- Circlip pliers
2
1
3
