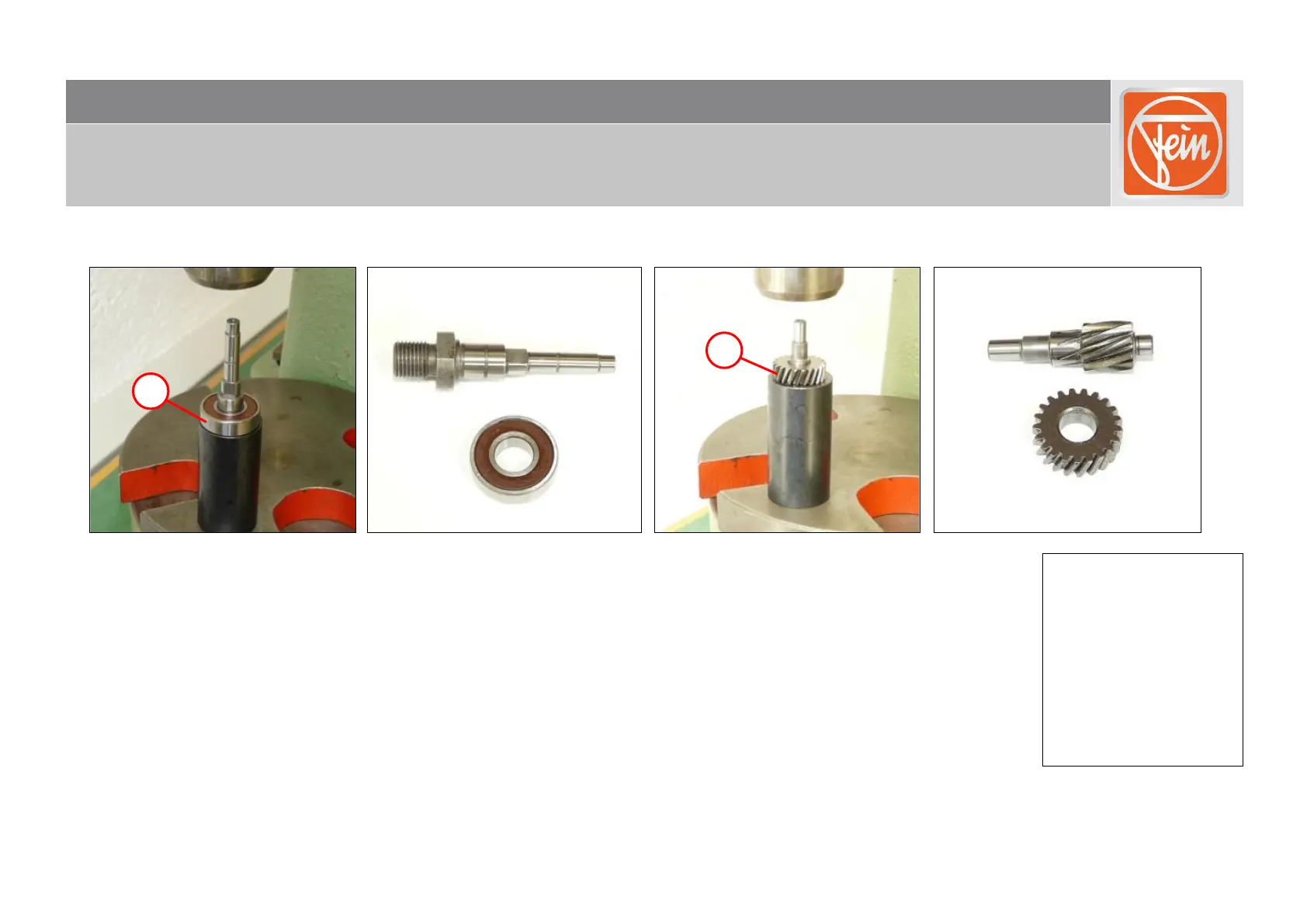

Removing the gearbox housing [applies to: BOP 10 (A)]
1. Press down on the grooved ball bearing (1).
2. Press the gear-wheel [z = 30 mm] (2) down.
Tools:
- Arbor press
- Sleeve
12 mm inner diameter
30 mm outer diameter
1
2
