BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
6. Removal
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 18 of 65

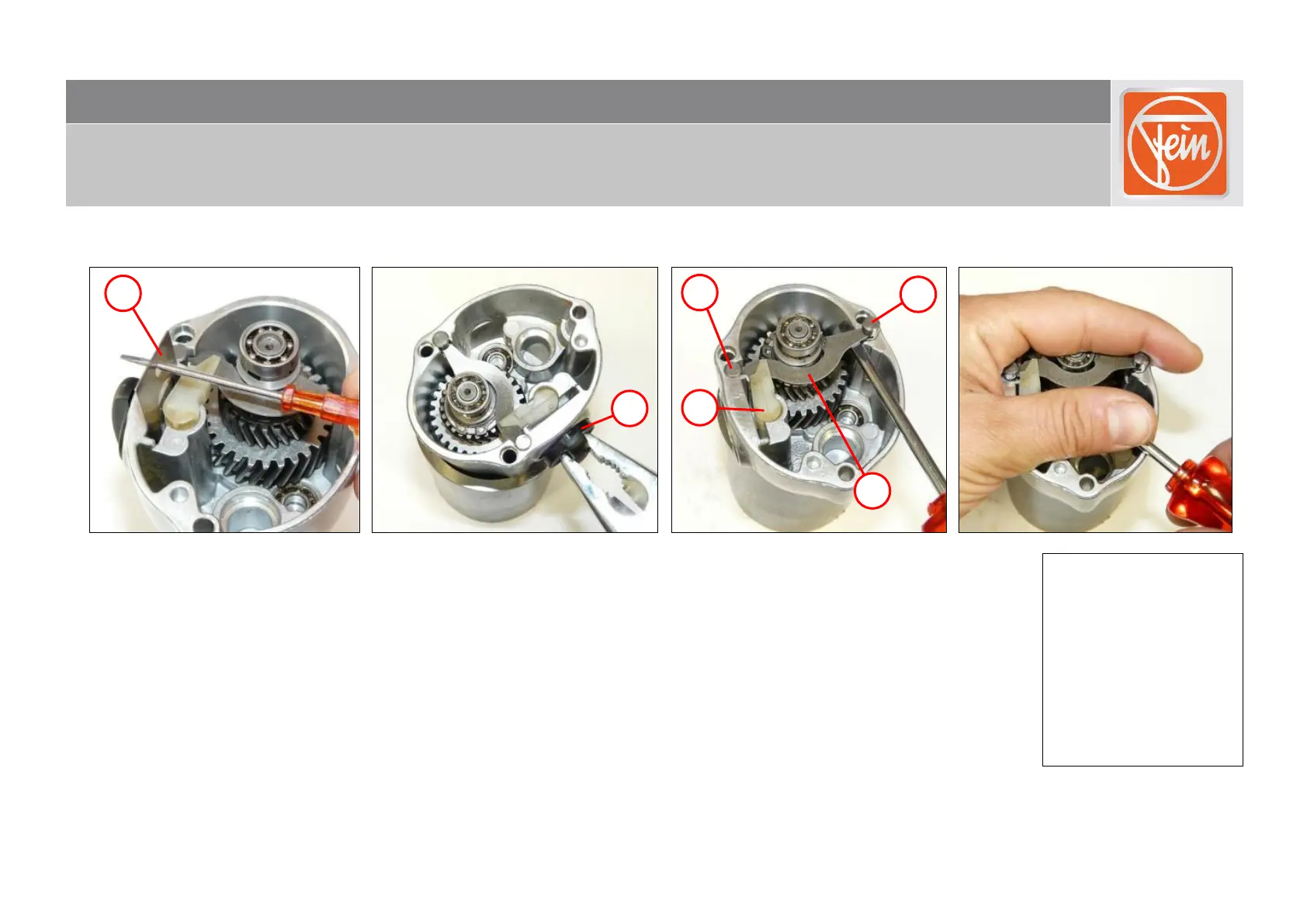

Removing the gearbox housing [applies to: BOP 13-2 (A)]
1. Remove the plate (1).
2. Remove the switch pushbutton (2).
NOTE:
The two leaf springs (5) are tensioned and could jump out.
3. Lever out the bolt (3) to halfway.
4. Lever out the bolt (4).
5. Remove the two leaf springs (5), the two bolts (3/4) and the bolt (6).
Tools:
- Slotted screwdriver
- Combination pliers
1
2
3
4
6
5
