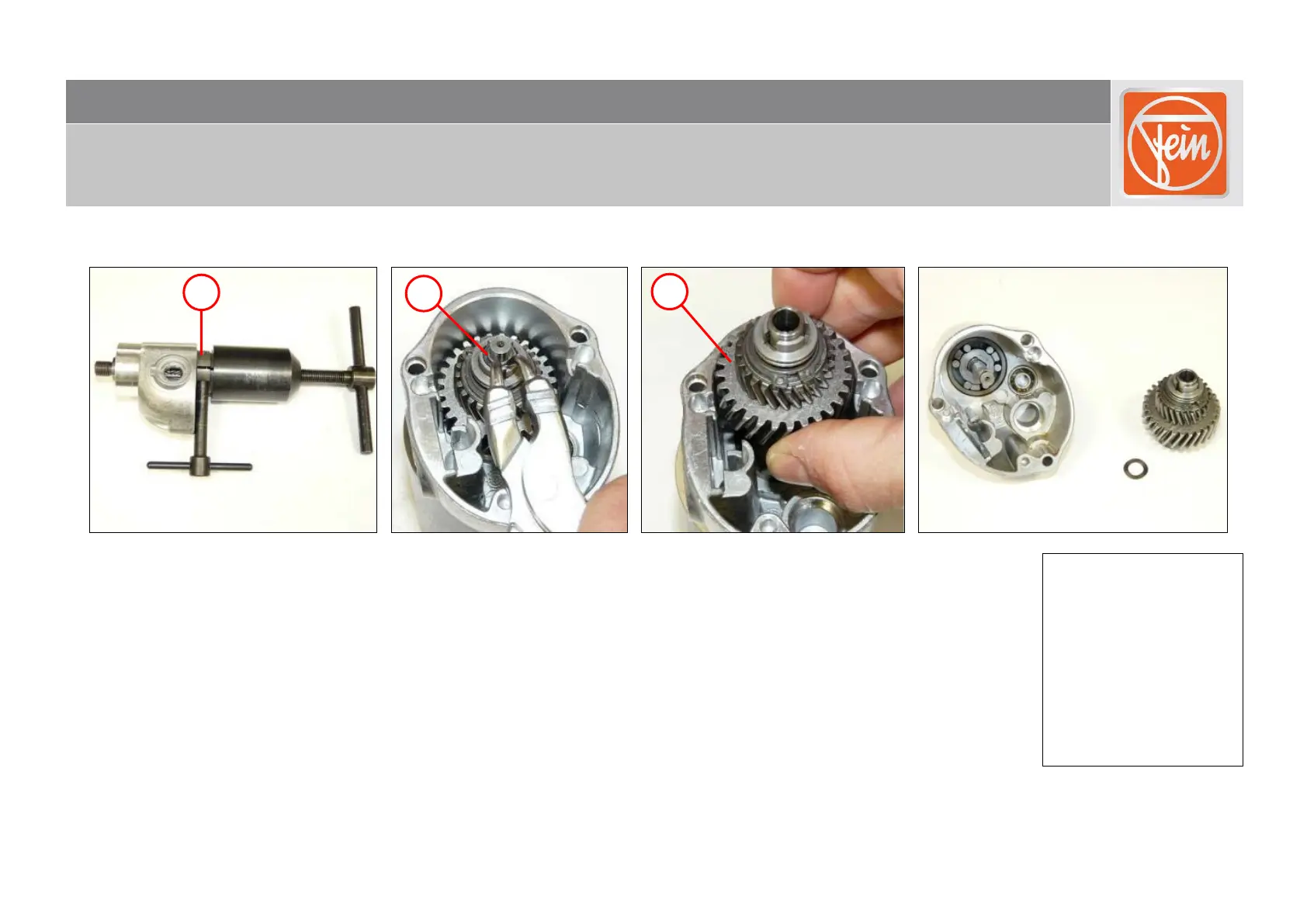

Removing the gearbox housing [applies to: BOP 13-2 (A)]
1. Pull off the ball bearing (1).
2. Remove the circlip (2).
3. Remove the gear-wheel (3) with the spring washer.
Tools:
- Drawing-off socket cap
- Chuck cone, 15 mm
- Circlip pliers
1
2
3
