Removing the gearbox housing [applies to: BOP 13-2 (A)]

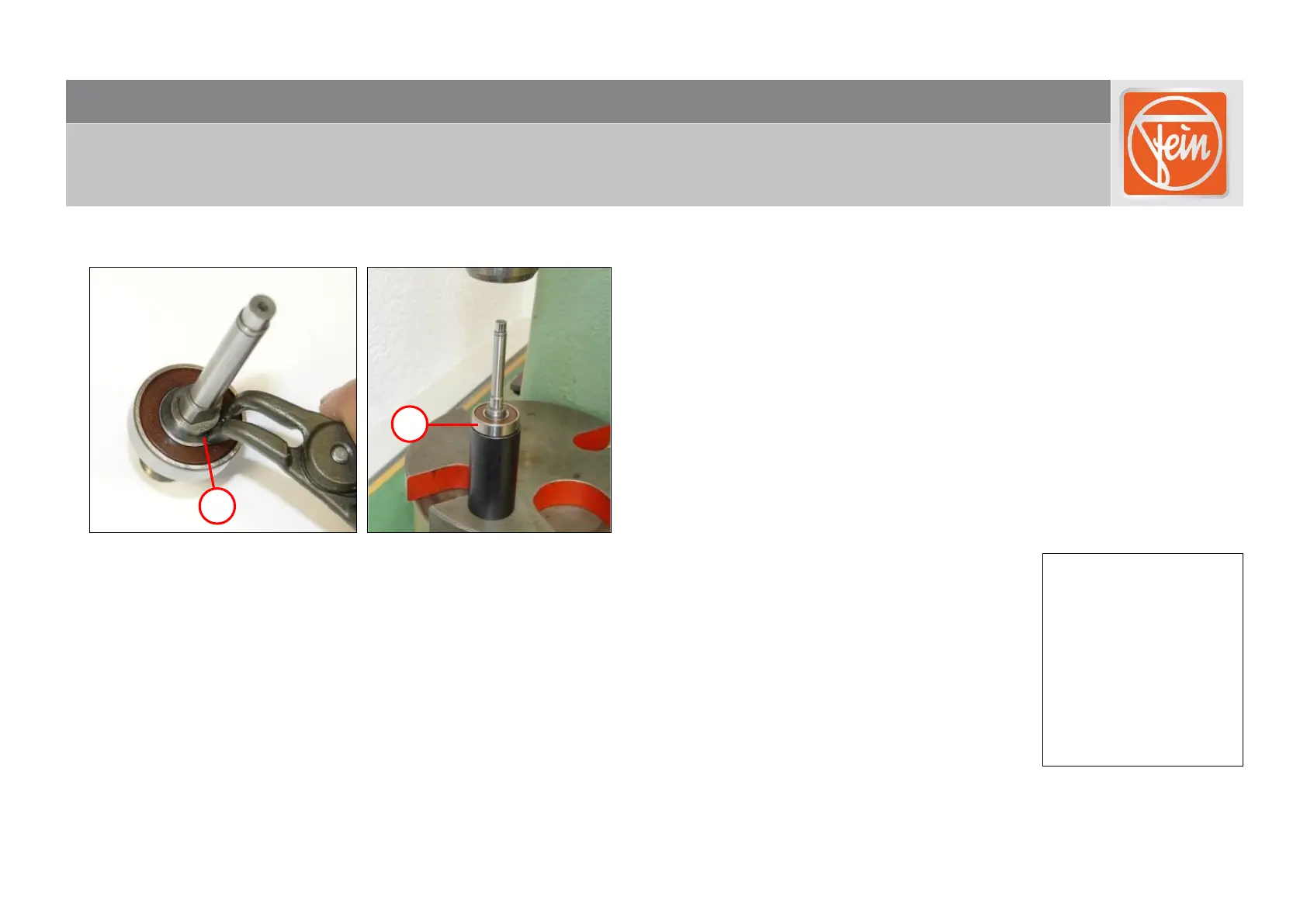

1. Remove the circlip (1).
2. Press down on the grooved ball bearing (2).
Tools:
- Circlip pliers
- Arbor press
- Sleeve:
20 mm inner diameter
28 mm outer diameter
1
2
