BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 40 of 65

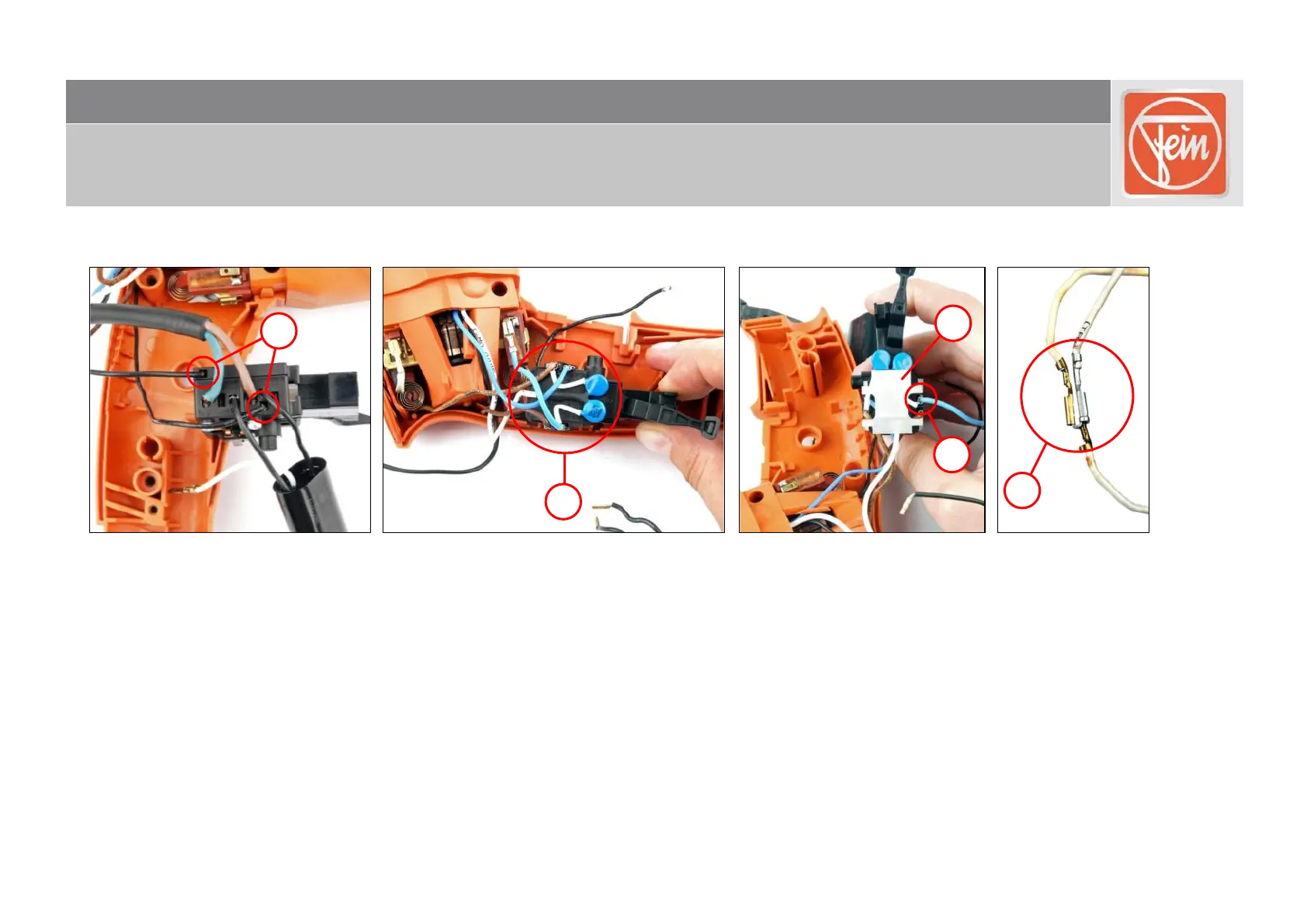

Fitting the switch
1. Connect the two black connection cables (1) from the stator to the speed setting switch.
2. Connect all cables to the toggle switch (2).
 Start with the radio shielding.
 See “Connection diagram”.
3. Fit the cover (3) on the speed setting switch.
 The blue cable (4) is outside of the cover.
4. Connect the three cables (5) to one another.
 See “Connection diagram”.
2
3
5
4
1
