Fitting the electronics

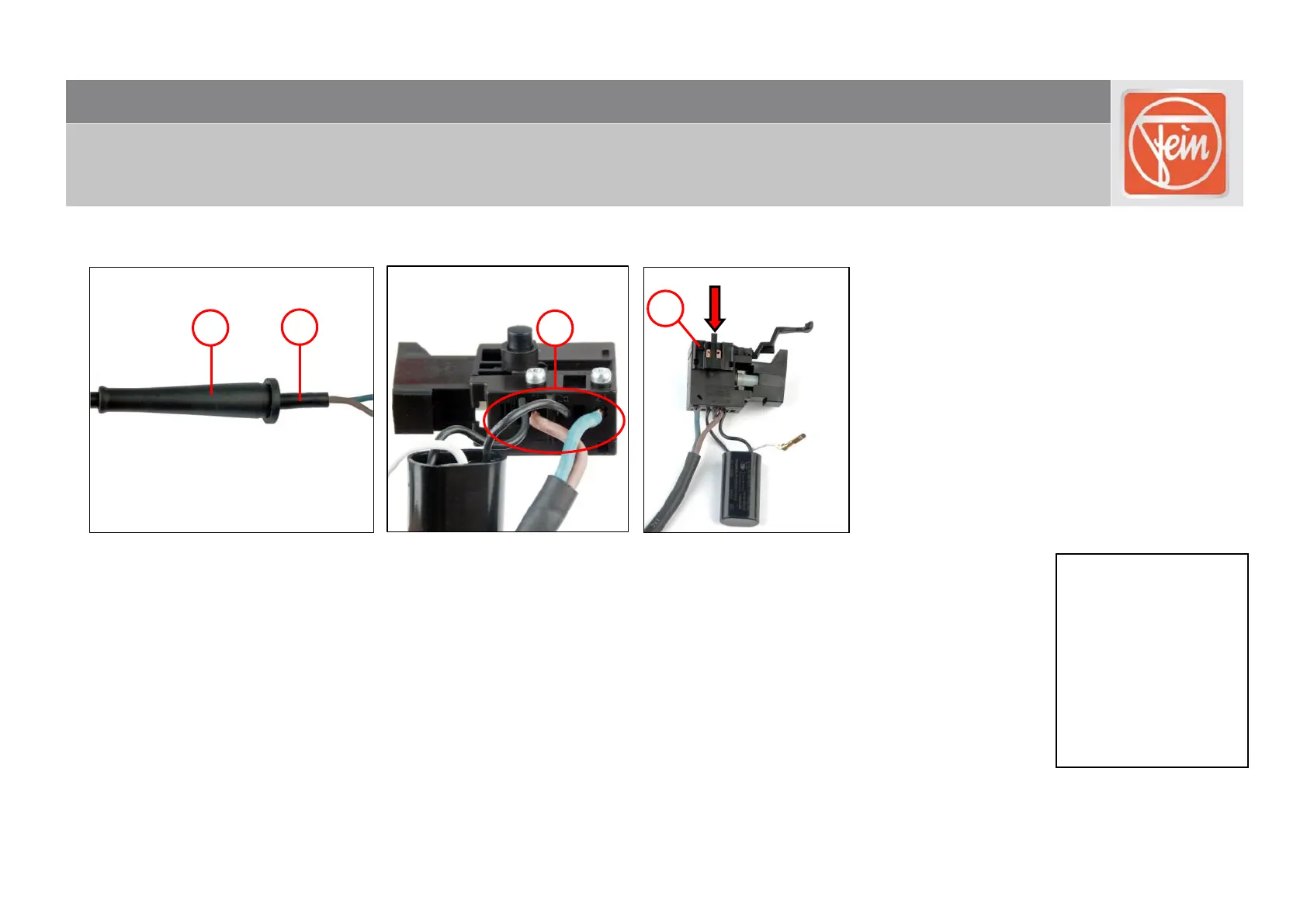

1. Slide the cable grommet (1) onto the cable (2).
2. Connect the cable and the capacitor to the speed setting switch (3).
 See “Connection diagram”.
3. Fit the toggle switch (4) to the speed setting switch.
Tools:
- PH1 cross-tip
screwdriver
