BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 38 of 65

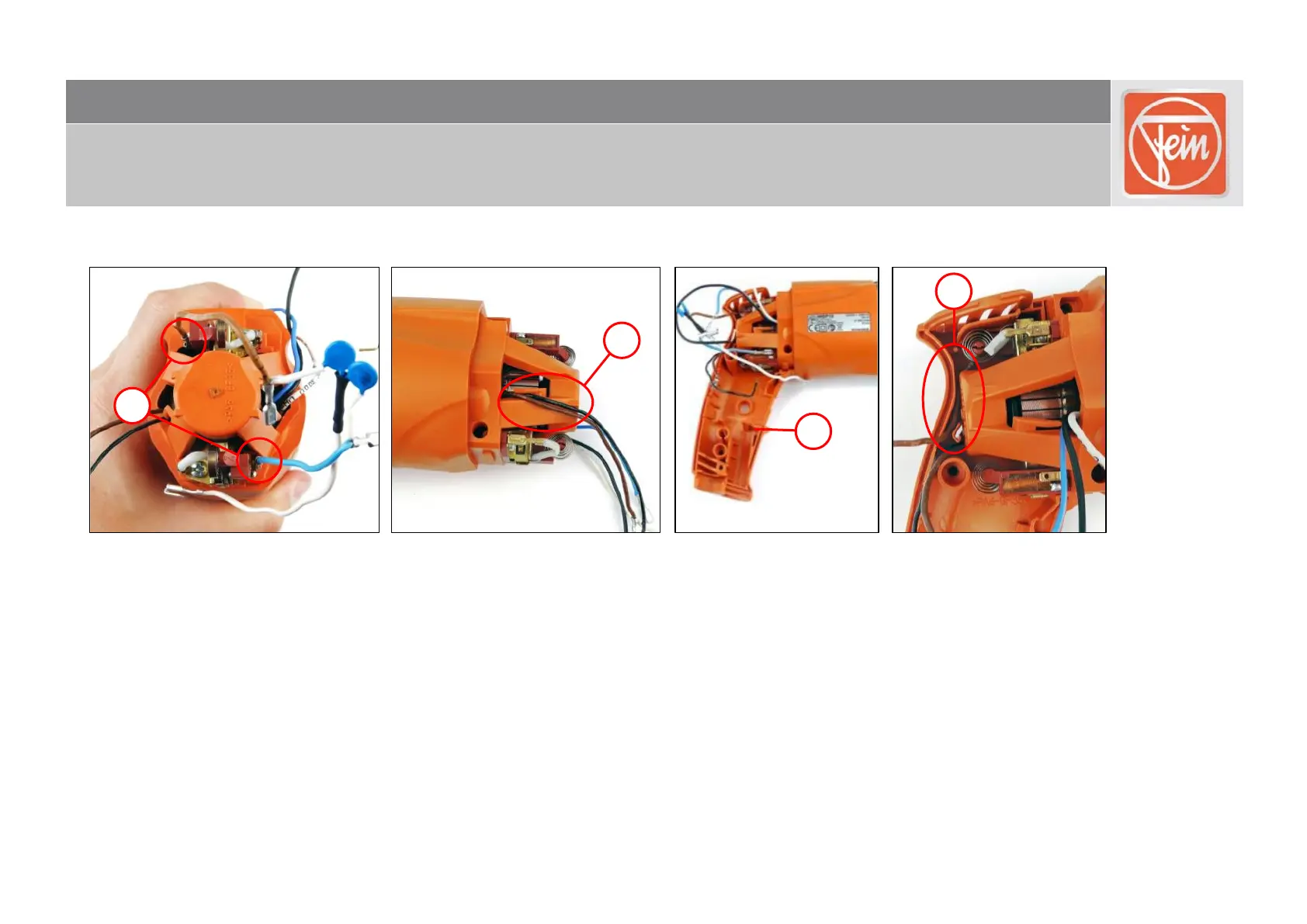

Fitting the electronics
1. Connect the long radio shielding cables (1) to the brush holders.
 See “Connection diagram”.
2. Route the cables (2) as shown in the photograph.
3. Fit the handle half shell (3).
4. Route the brown radio shielding cable (4) as shown in the photograph.
1
3
2
4
