BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 45 of 65

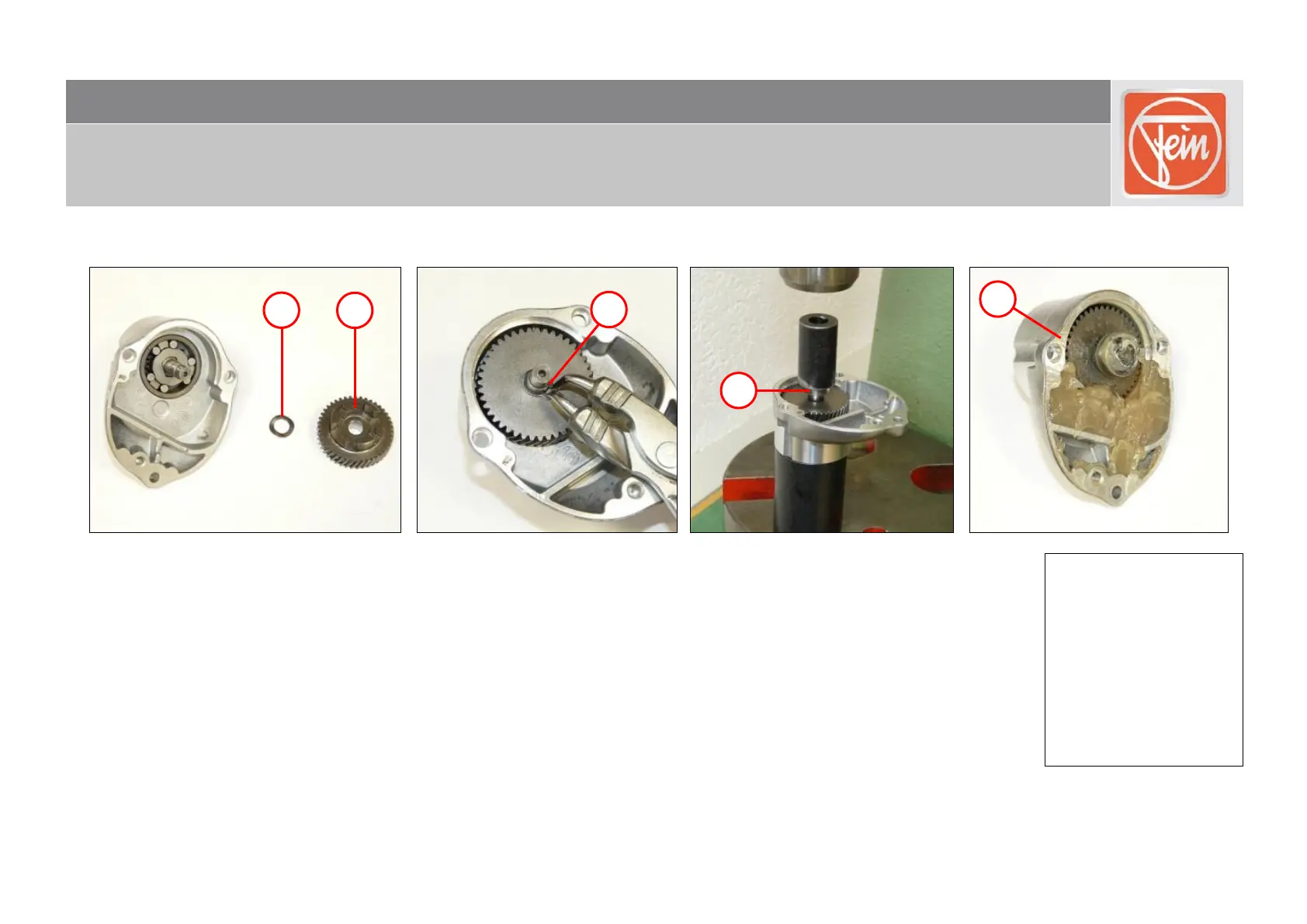

Fitting the gearbox housing [applies to: BOP 6 (A)]
1. Position the spring washer (1).
2. Place the gear-wheel [z = 43] (2) in the correct position.
3. Fit the circlip (3).
 Replace the circlip during each fitting.
4. Press on the grooved ball bearing (4).
5. Fill the gearbox housing (5) with 12 g of grease.
Tools:
- Arbor press
- Sleeve
6 mm inner diameter
20 mm outer diameter
- Grease
1
4
3
2
5
