Fein BOP 6 - Page 59

BOP 6 (A); BOP 10 (A); BOP 10-2 (A); BOP 13-2 (A)
7. Fitting
C-SC_CSSM
Version 1.0
2017-10-12
All rights reserved by FEIN, especially in case of property rights applications.
FEIN retains all rights of disposal, such as copying and circulation.
Page 59 of 65

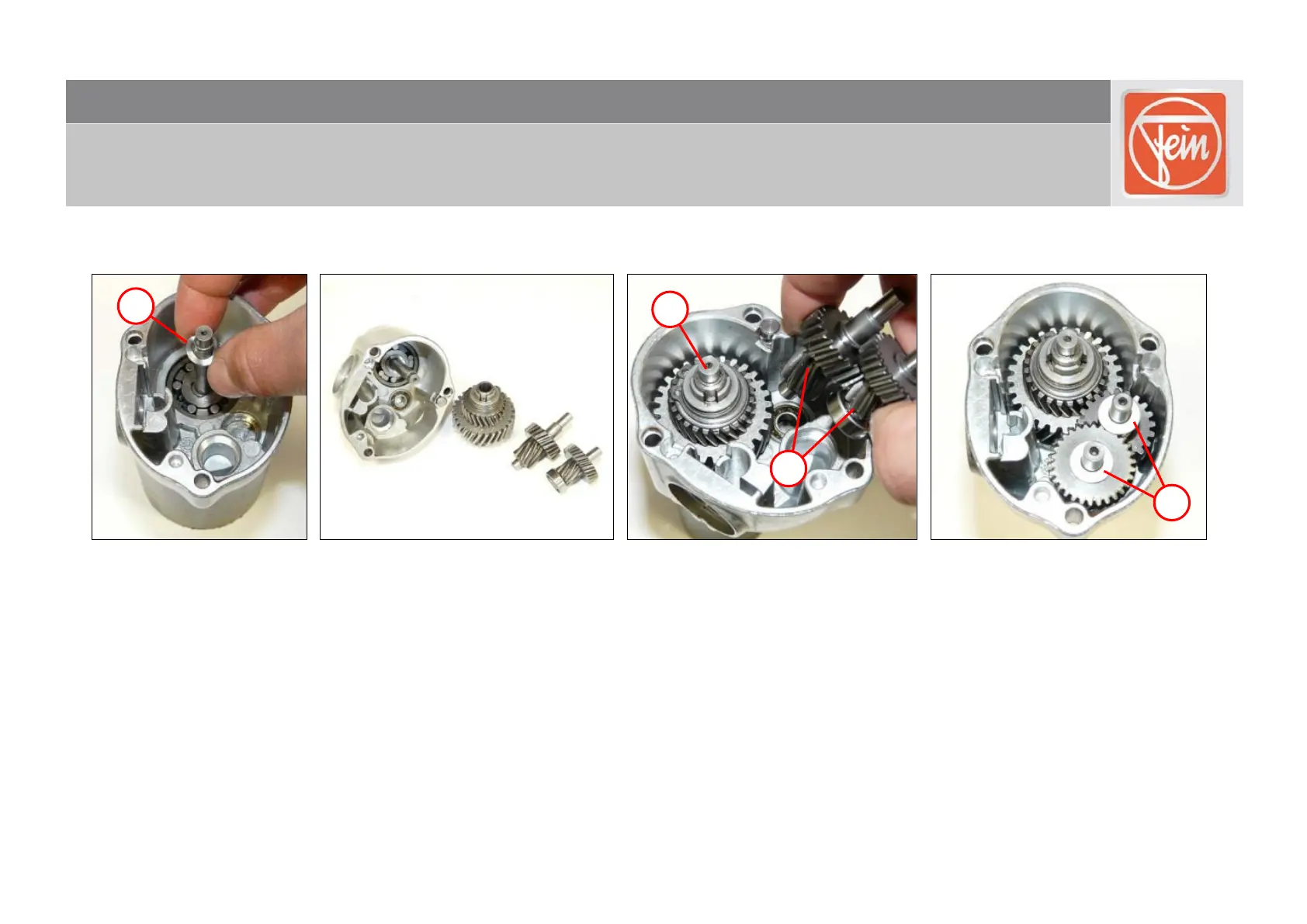

Fitting the gearbox housing [applies to: BOP 13-2 (A)]
1. Position the spring washer (1).
2. Insert the gear-wheel (2) in the correct position.
3. Insert the two shafts (3).
4. Position the two discs (4).
1
2
3
4
