5.1. Assembly – Drill jig / Guide

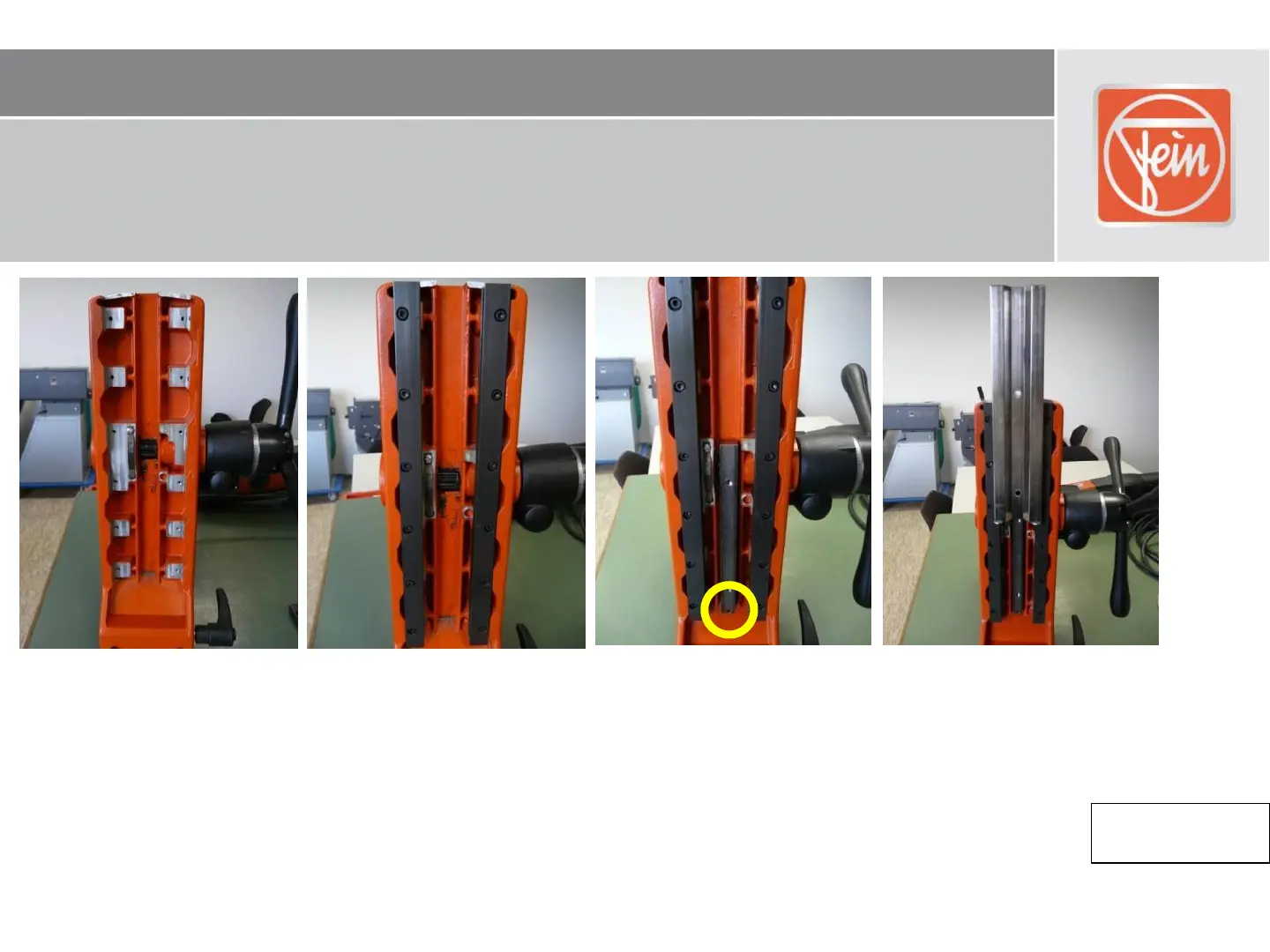

Put in the gliding bars to the drill jig and feed the screws (not tighten)
Lay in the gear rod to the gear teeth of the gear box (locking pin down – yellow circle)
Move down the guide from the upper side
Tools:
- allen key 4 mm
