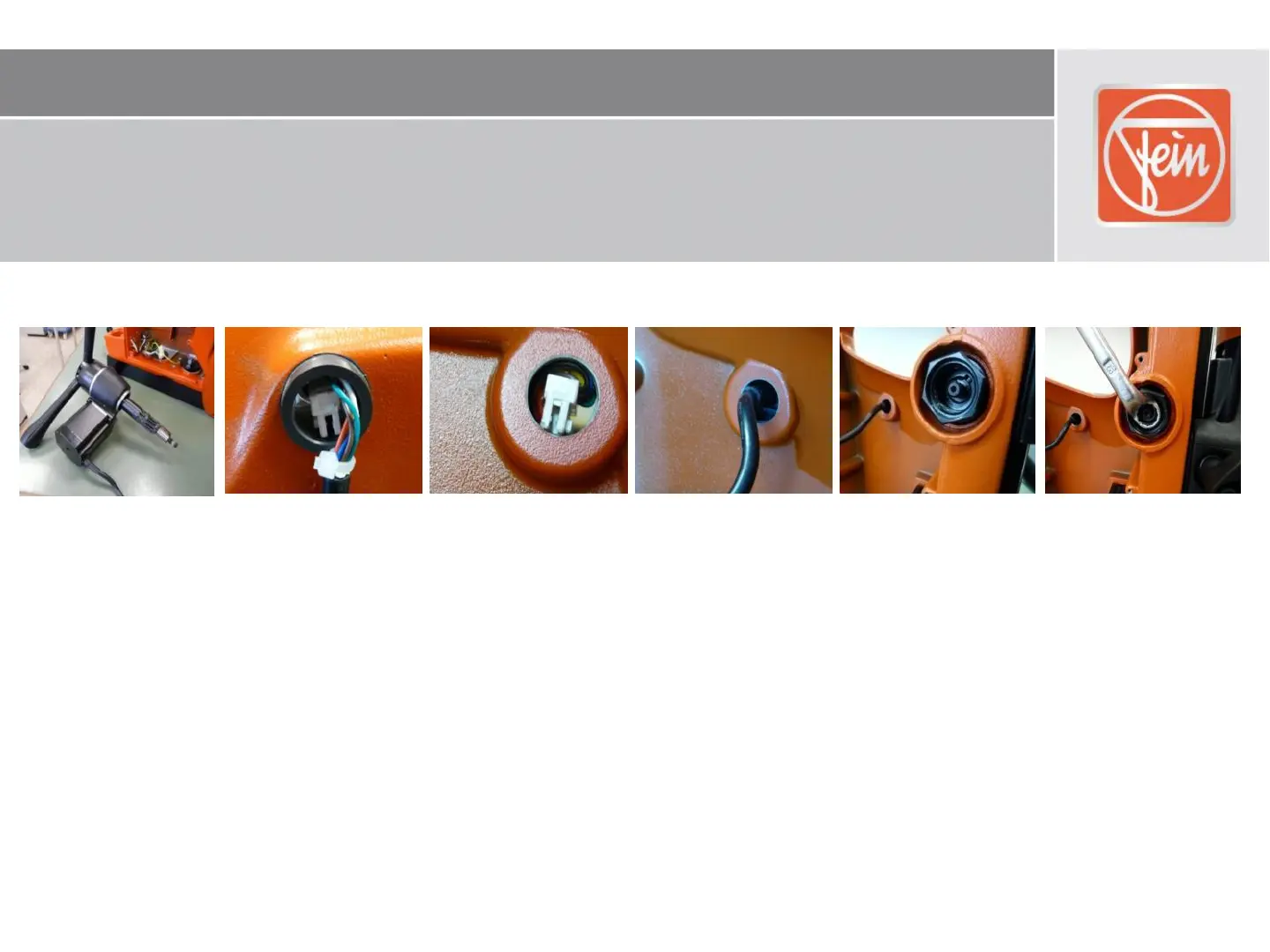

5.4. Assembly - Feed unit
Fit pre-assembled spider with feed motor on drill jig
Insert feed motor cable through hole in drill jig – do not bend cable too much, otherwise it might break
Insert guide bush
Remove Loctite residue on threaded bar and nut and clean parts.
During assembly, moisten threaded bar with Loctite 242, then tighten nut to 1 Nm). Torque of 1 Nm
must be complied with, otherwise the automatic feed will not work correctly.
