FeiYu Tech SCORP 2 - Balancing the Roll Axis

- 6 -

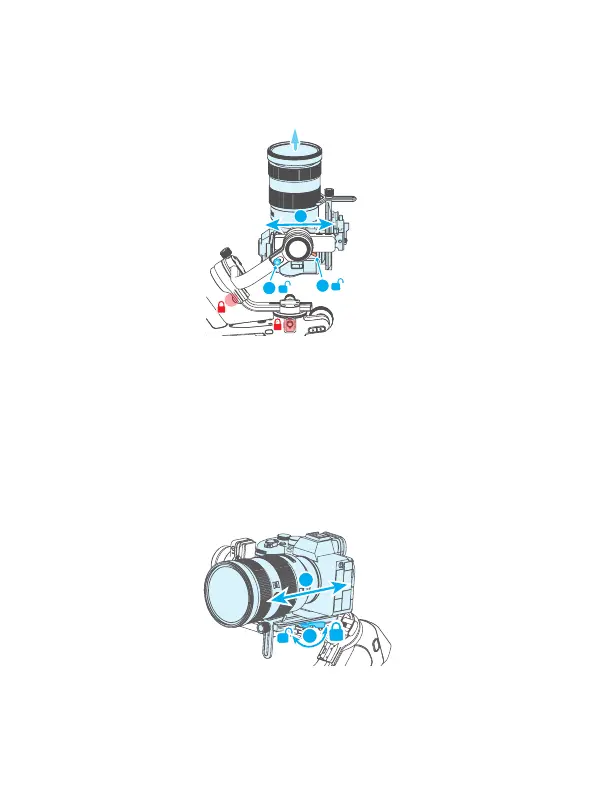

which the lens tilts to.
c. If the lens tilts to one side, then the camera is that side heavy, move the slide
arm ③ to the opposite direction, until the camera is steady pointing upward.
d. Tighten the slide arm lock ② while holding the camera.
3
2
1
4.1.2 Adjust depth for the tilt axis
a. Rotate the tilt axis so that the camera lens is pointing forward. Check the direction
which the lens tilts to.
b. If the lens tilts to one side, then the camera is that side heavy, unlock the quick
release plate lock ① and then move the quick release plate to the opposite direction,
until the camera is steady pointing forward.
c. Lock the quick release plate lock ① while holding the camera.
The tilt axis is balanced when the camera is steady while tilted up or down by 45° .
2
1
4.2 Balancing the roll axis
a. Unlock the roll lock ① , check the direction which the camera tilts to.
