3.3 Mount camera on gimbal
Horizontal mounting

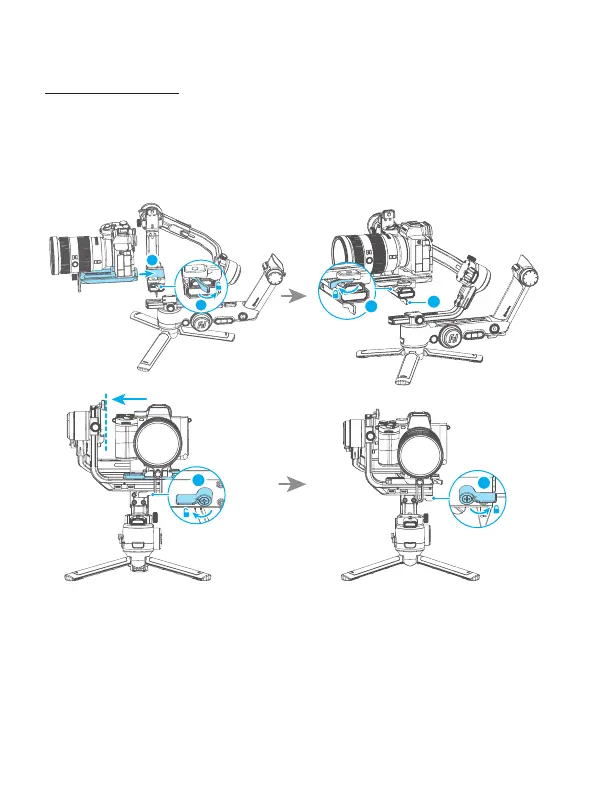

Unlock the quick release plate safety lock ① , push the plate with the mounted
camera into the slot ② in direction of arrow, lock the safety lock ① once the camera
is roughly balanced. It is recommended to push the camera against the tilt axis.
Unlock the slider lock ③ to move the camera left or right according to camera's
width, then lock the slider lock ③ .
2
1
1
3
3
3
