3.3Balance Adjustment of the Panning Axis
The lens is down，slide the vertical
arm backward to adjust
The lens is up
，slide the vertical
arm forward to adjust
T
L
When the balance adjustment of tilting axis
and rolling axis is completed, the balance
of the panning axis can be adjusted.

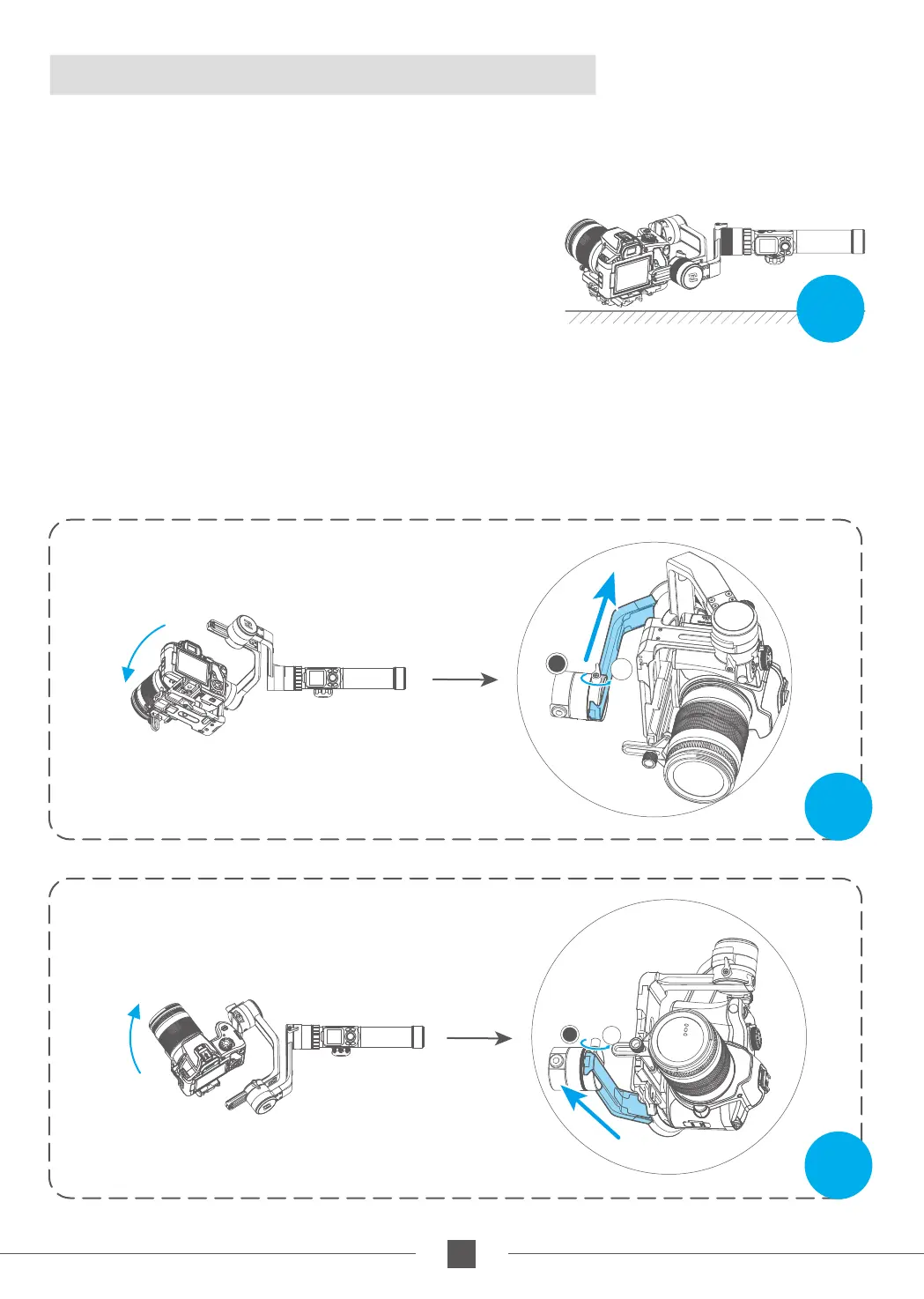

Keep the stabilizer handle part parallel to the
horizontal floor, and hold the vertical arm parallel to
the ground, as shown in Figure 15.
Unscrew the lock screw of the pan axis motor and slide
the vertical arm to adjust it (see Figure 16, Figure 17).
When the vertical arm is parallel to the ground, the pan
axis can stay stably at any angle, indicating that the
balance adjustment of the pan axis is completed.
* After adjustment, make sure tighten the lock screw.
T=Tight
L=Loose
T
L
T=Tight
L=Loose
Figure15
Figure16
Figure17
