3.2Balance Adjustment of the Rolling Axis

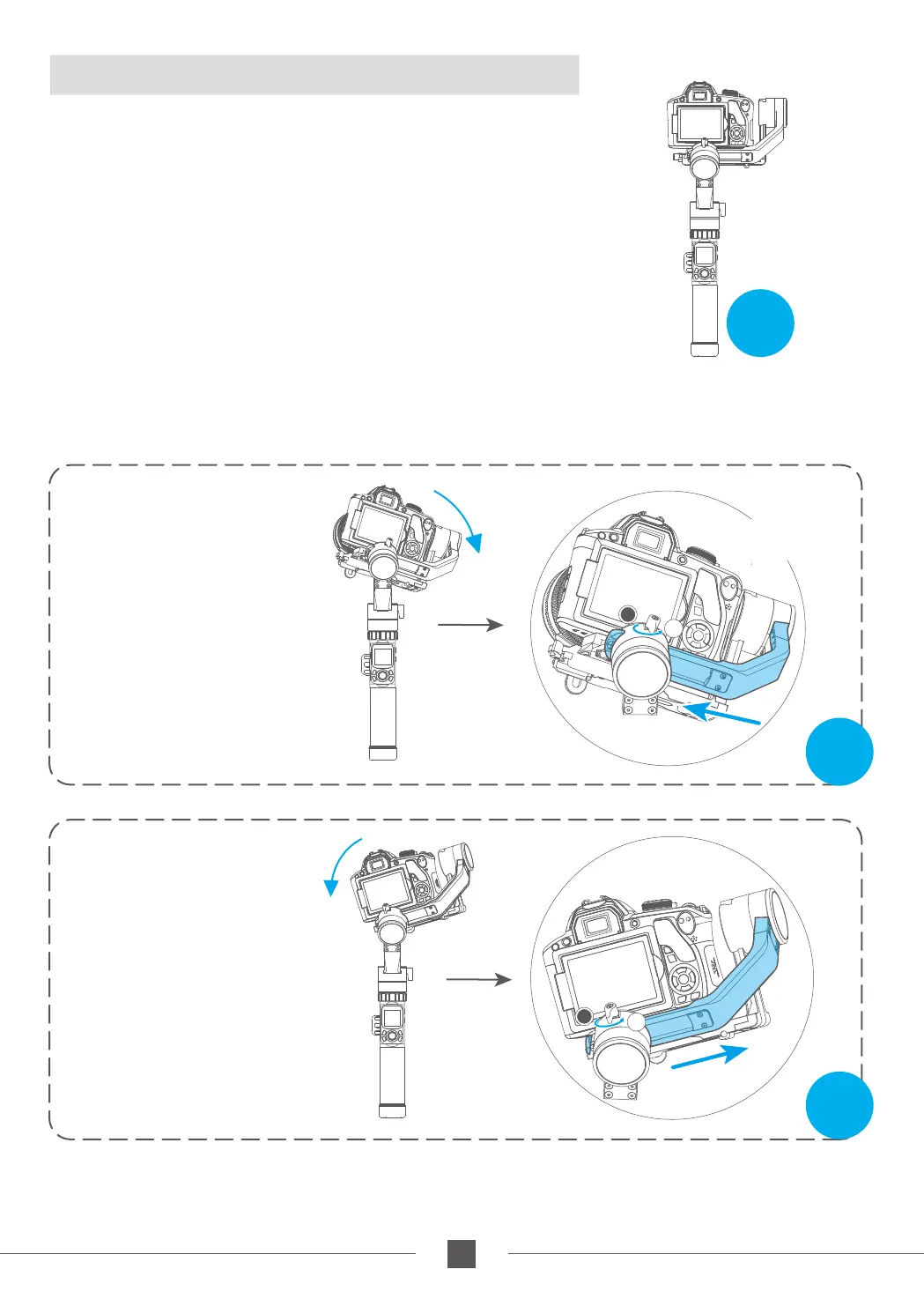

Camera leftward,slide the
cross arm right to adjust
Camera rightward,slide the
cross arm left to adjust
Unscrew the lock screw of the motor of roll axis and adjust the left and
right sliding cross arm (see Figure 13, Figure 14). When the roll axis can
stay stably at any angle, it means that the balance adjustment of the
roll axis is completed.
When the balance adjustment of the tilt axis of the stabilizer is
completed, the balance adjustment of the roll axis can be
performed: the camera lens is placed horizontally forward, the cross
arm is kept horizontally as shown in Figure 12, and the cross arm is
released to make the cross arm in a natural state. Observed camera
tilt state.
* After adjustment, be sure to tighten the lock screw.
Figure12
Figure13
Figure14
L
T
T=Tight
L=Loose
L
T
T=Tight
L=Loose
