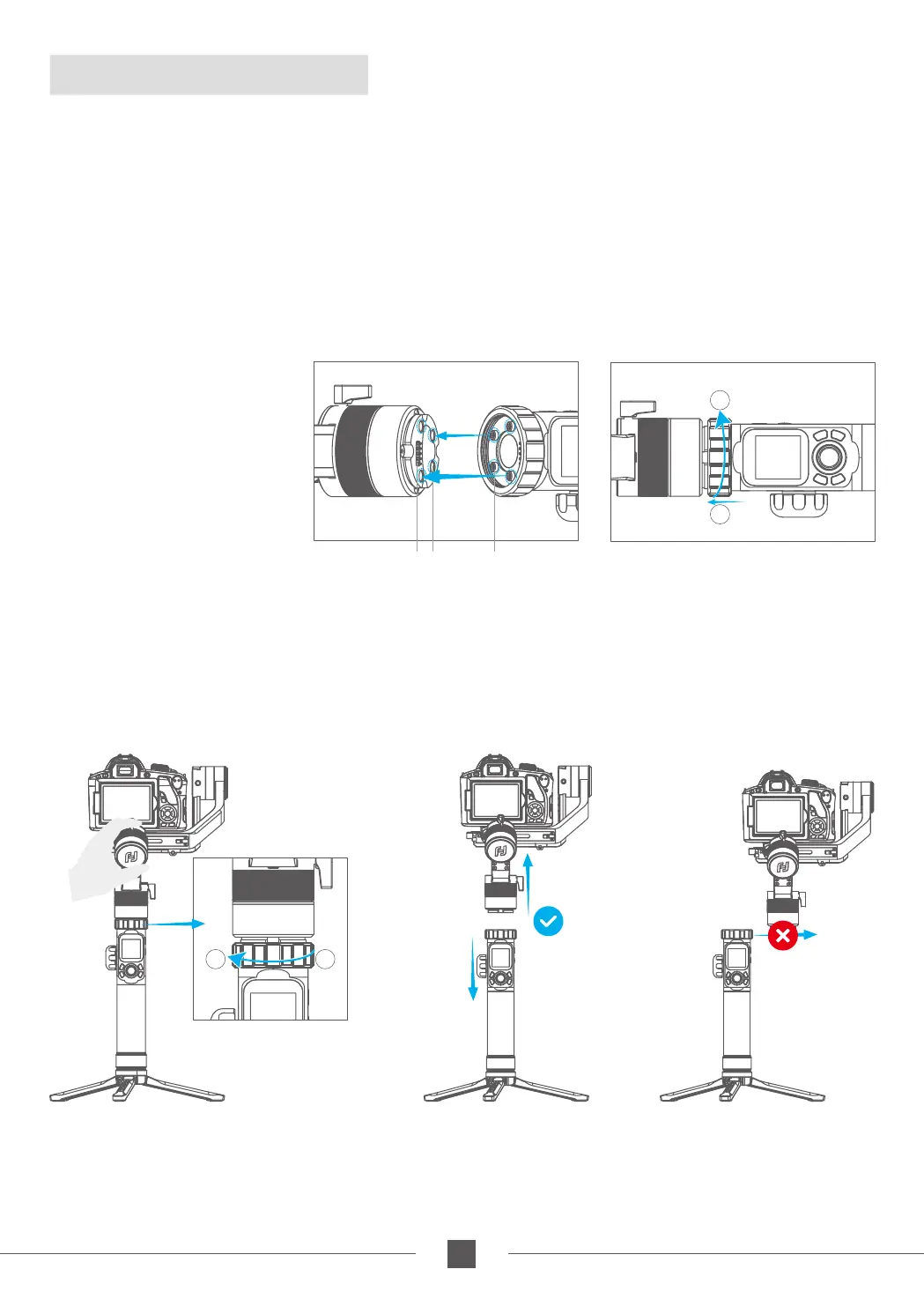

2.3 Installation handles
2.3.1 Installation handles
2.3.2 Split handle
Figure 1
Figure 2
Figure3 Figure4 Figure5
The stabilizer is placed flat on the ground, holding the stabilizer's head, and only twisting the retaining ring,
as shown in Figure 3. After twisting, the head is lifted vertically and upwards, as shown in Figure 4. Do not
move left or right, as shown in Figure 5, to prevent the stylus from breaking.
L
T
L
T
A B C
alignment
alignment
T=Tight L=Loose
T=Tight L=Loose
Note: When installing the handle, the four positioning screws must be aligned with the corresponding
positioning holes and then tighten the fixing ring to avoid the stylus being hit and causing troubles to
the stabilizer.
Align the handle positioning screw with the head positioning hole, fix the handle part and the head, then
move up the fixing ring up and tighten it, and the installation is completed.
A.Stylus
B.Positioning hole
C.Positioning screw
