6.3 Install foot bracket and display unit

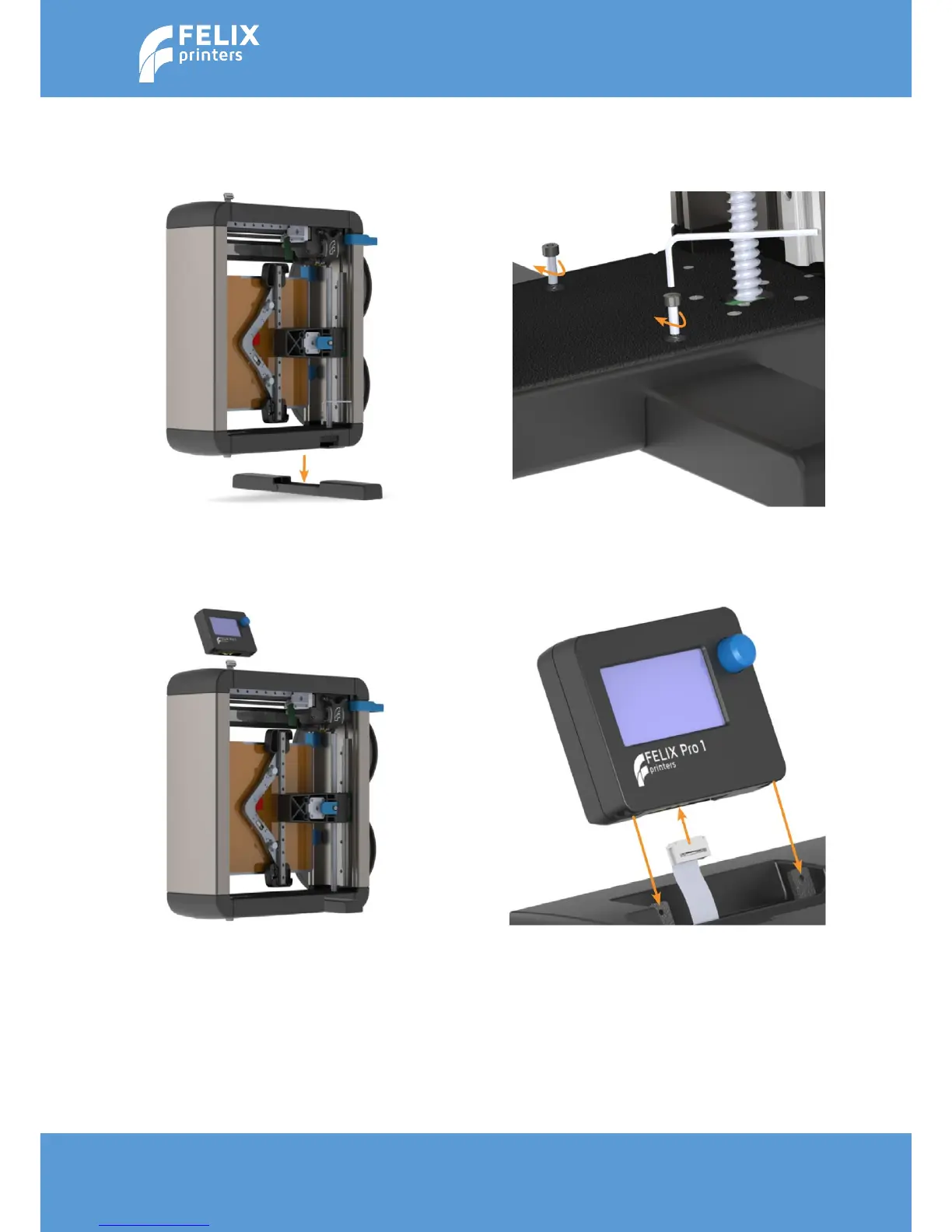

Place the foot bracket on a flat and stable surface. Place the printer on top of it and fix the parts together
with the supplied M4 bolts and Allen key.
First push the connector into the display unit and then slide the display unit on the two pins.
WARNING: Make sure the power is turned off when connecting the display.
1
2
2
