24

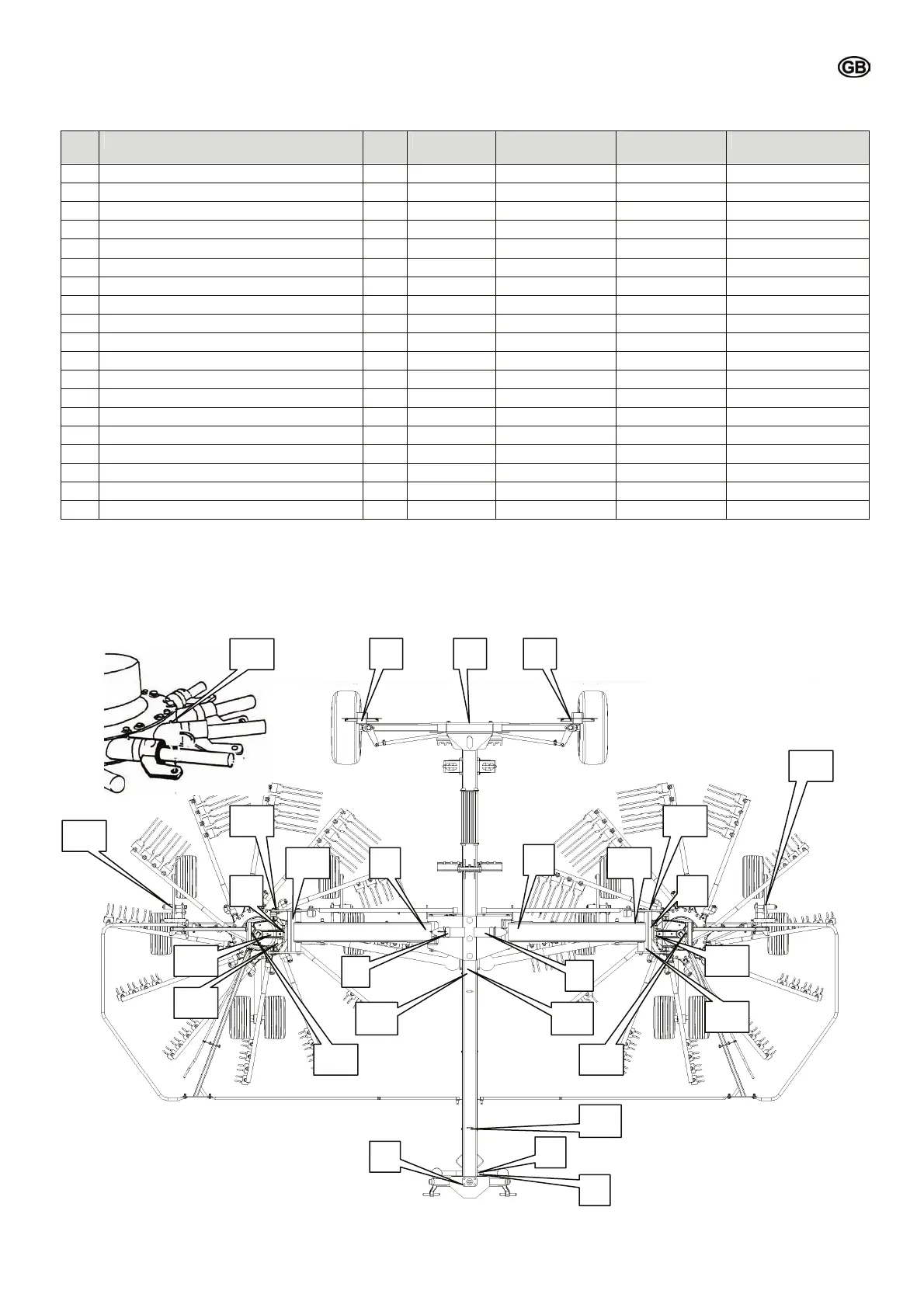

Lubricating scheme / Lubrication plan
no: point of lubrication units frequency
type of
maintenance
quantity lubricant
1 steering shaft, front 1 50 h grease as necessary multipurp. grease
2 swivel headrack, inferior 1 50 h grease as necessary multipurp. grease
3 swivel headrack, superior 1 50 h grease as necessary multipurp. grease
4 slewing arm, interior 2 50 h grease as necessary multipurp. grease
5 slewing arm, exterior 2 50 h grease as necessary multipurp. grease
6 axle pivot 2 50 h grease as necessary multipurp. grease
7 steering shaft, rear 1 50 h grease as necessary multipurp. grease
9 lifting cylinder 2 50 h grease as necessary multipurp. grease
10 rotor drive 2 50 h grease 2) 3 cm³ multipurp. grease
11 adjusting spindle 2 50 h grease 2) 3 cm³ multipurp. grease
12 rotor arm 24 50 h grease 2) 3 cm³ multipurp. grease
13 axle guiding device 2 50 h grease 2) 3 cm³ multipurp. grease
14 adjustable cam plate 2 50 h grease 2) 10 cm³ multipurp. grease
15 tandem rocker 2 50 h grease as necessary multipurp. grease
16 contact roller rotor suspension 2 50 h grease as necessary multipurp. grease
17 flanged bearing 1 50 h grease as necessary multipurp. grease
18 universal joint 1 250 h grease as necessary multipurp. grease
19 gearbox GT-30 2 200 h check oil level as necessary SAE 85W-90
19 gearbox GT-30 2 1) oil change 0.8 litre SAE 85W-90
1) only in case of repair
2) Make sure, dosage is correct. Standard, commercialtype grease guns will deliver about 1 cm
3
grease per stroke.
The rotor arms seal or rotor axle seal will not allow any excessive grease quantities visible from outside.
5
6 7 6
9
10
11
13
16
14 4
3
17
5
4
9
10
11
14
13
16
15
19 18
12
15
1
2
