Fellowes ESI Evolve - F - Fixed; FS - Fixed Slider EVOLVE1-F (SINGLE); Evolve1-Fs (Single); Evolve2-F (Dual); Evolve2-Fs (Dual)

Evolve1-F Evolve1-FS Evolve2-F Evolve2-FS
Armstem (PG. 13)
Slide stem arm over pole
and secure in place with the
5mmAllenkey.
Fixed arm (PG. 14)
Insert fixed arm to armstem.
Pole mount (PG. 10)
Secure pole mount to
worksurface.
VESA or slider (PG. 17)
Attach reducer bushing to vesa
or slider. Insert vesa or slider to
fixed arm.
Dual (PG. 13)
For dual display configurations,
reverse the second stem
arm on the pole, then repeat
configuration on second stem
arm.
VESA plate (PG. 18)
Attach VESA plate to back of
monitor.
Quick release (PG. 18)
Attach displays using the quick
release feature.
Tension (PG. 19)
Adjust tension on VESA
or slider.

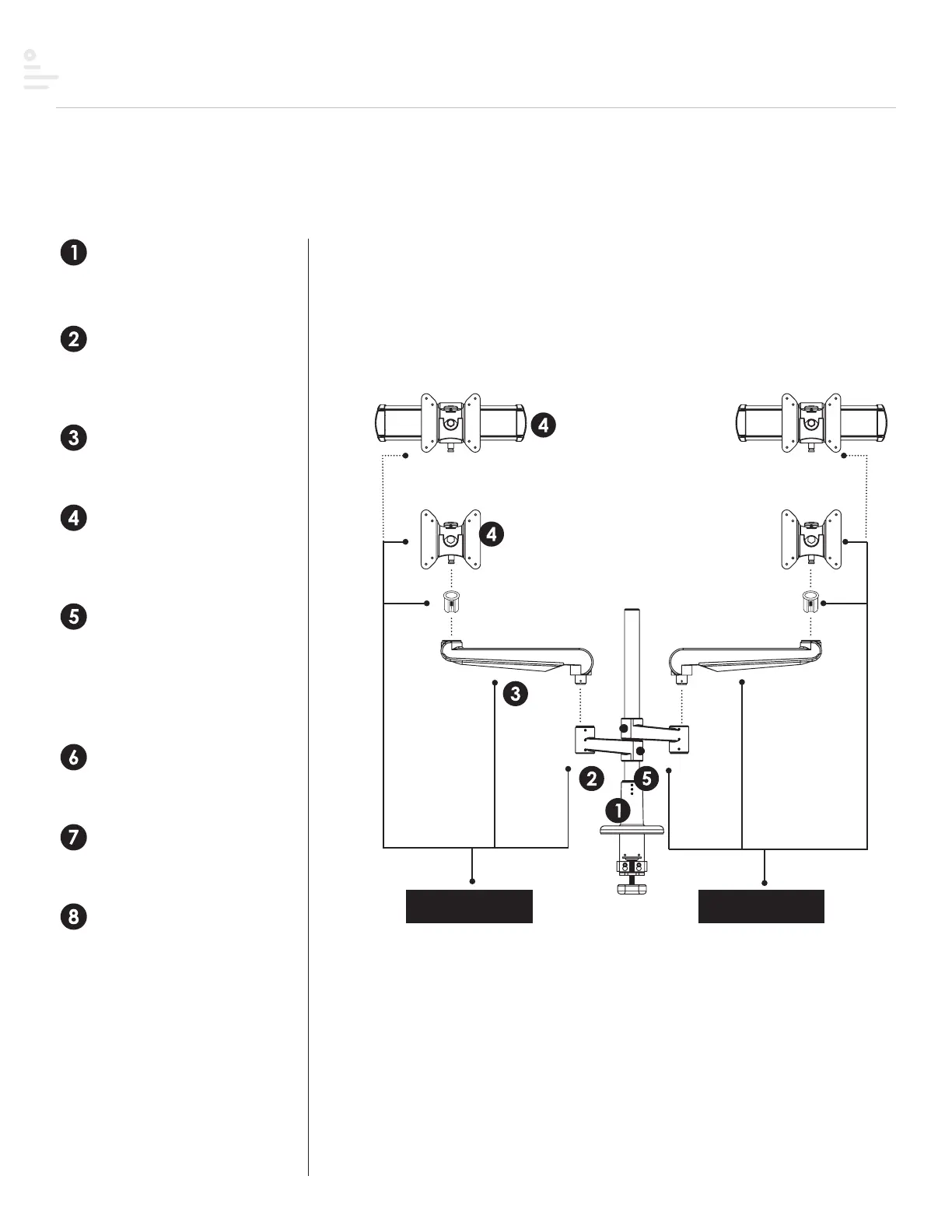

fixed arm
stem
stem
fixed arm
BUILD 1ST
Completes Evolve1-F assembly
or
Completes Evolve1-FS assembly
BUILD 2ND
Completes Evolve2-F assembly
or
Completes Evolve2-FS assembly
reducer
bushing
reducer
bushing
slider or VESA
More complete instructions for part assembly can be found on the page numbers listed below.
This may include, but is not limited to, screws, adjustment knobs, bushings and surface protection.
slider or VESA
6
