Specifications

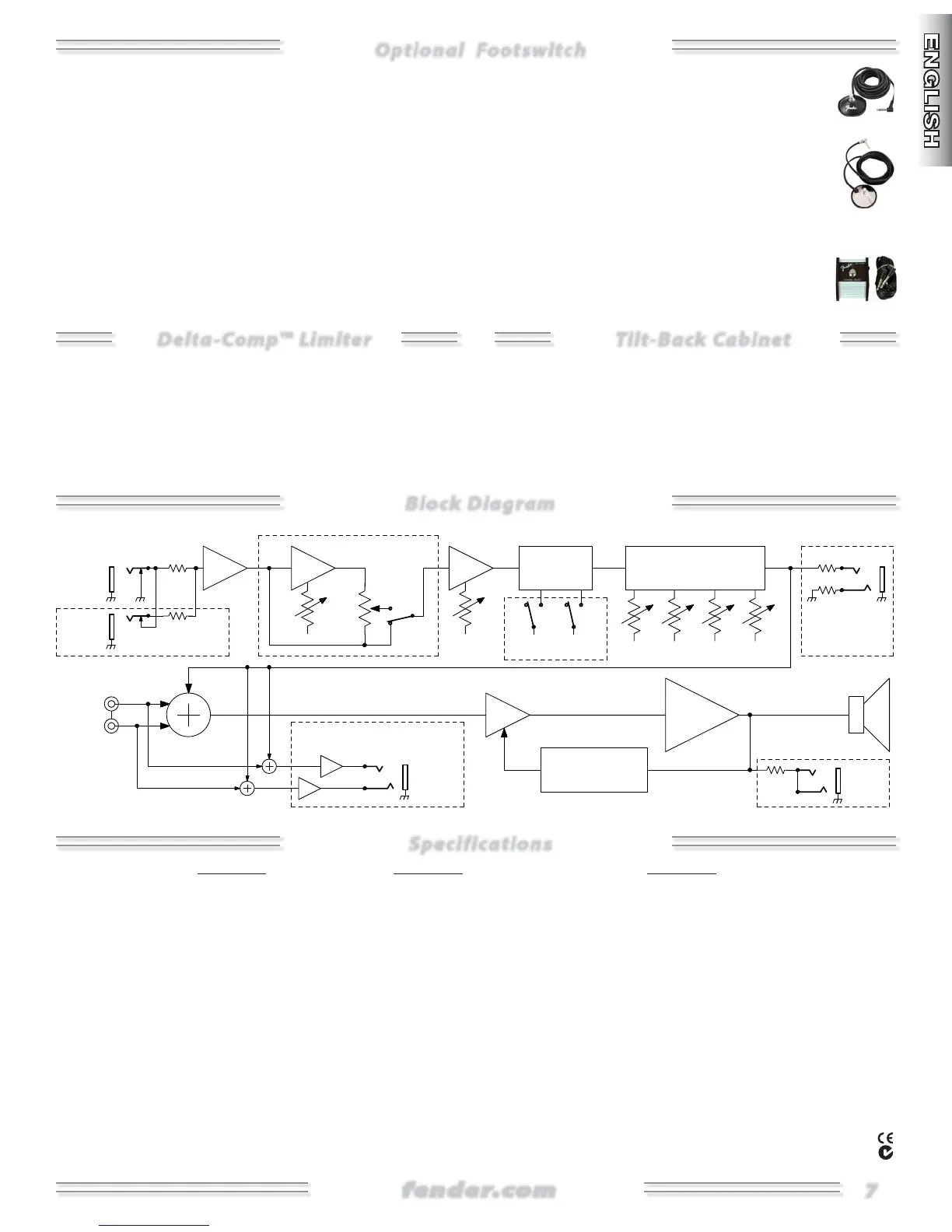

Block Diagram
Optional Footswitch
Connect a footswitch to the Rumble 75 to remotely enable
OVERDRIVE. Fender makes three footswitch pedals that will work
with the Rumble 75 (shown at right with part numbers). Any
generic single-button latching-type footswitch will work. We
recommend the Fender LED FOOTSWITCH (P/N 0994052000) for
best performance. Contact your local Fender dealer to purchase
the Fender footswitch of your choice.
NOTE: If a footswitch is connected, the front panel switch will still
work, but it is possible for its position IN/OUT to become backwards
(i.e. IN=OFF), depending on the footswitch status. The Overdrive
light (LED) on the front panel will ALWAYS be correct, but the LED in
the footswitch may be incorrect. If using a footswitch with an LED,
keep the front panel switch in the OUT position to have the correct
status displayed on the footswitch LED.
. ECONOMY FOOTSWITCH (P/N )
Basic black one-button on/off footswitch
. VINTAGE FOOTSWITCH (P/N )
Chrome one-button on/off footswitch.
. LED FOOTSWITCH (P/N ) Contemporary one-
button on/off footswitch with LED indicator.
NOTE: You must switch the Overdrive effect off
before connecting this footswitch to enable the
footswitch LED to operate properly.
Rumble bass amplifiers are equipped with Fender’s Delta-
Comp limiter to minimize power amp distortion and increase
sustain. Setting the VOLUME control to higher settings or playing
aggressively with hotter basses may result in a heavily compressed
sound with increased sustain. Using INPUT 2 or setting the
VOLUME control lower will provide a less compressed sound with
more dynamic range and increased touch-sensitivity.
The tilt-back cabinet design of the Rumble 30 & 75 offers additional
tonal flexibility for your amplifier. Leaving the cabinet in the
upright position will enhance low-end bass response. Tilting the
cabinet back will direct midrange and treble frequencies upwards,
providing a clearer sound that may be easier to hear in small rooms
or rehearsal situations. Experiment with cabinet position to find
the best tone for your application.
Delta-Comp™ Limiter
Tilt-Back Cabinet
MODEL: Rumble 15 Rumble 30 Rumble 75
POWER REQUIREMENT:
40W Max / 20W Typical 80W Max / 40W Typical 200W Max / 100W Typical
INPUT IMPEDANCES: 1M (Input) / 10k (Aux In) 1M (Input 1) / 136k (Input 2) / 10k (Aux In) 1M (Input 1) / 136k (Input 2) / 10k (Aux In)
PRE-AMP SENSITIVITY: 40mVrms 40mVrms (Input 1) / 80mVrms (Input 2) 40mVrms (Input 1) / 80mVrms (Input 2)
(Full power @ 100Hz, Volume at max, tone controls flat)
POWER AMP OUTPUT:
15
W into
8
@ <
0.1
% THD,
100
Hz
30
W into
8
@ <
0.1
% THD,
100
Hz
75
W into
8
@ <
0.1
% THD,
100
Hz
TONE CONTROLS: BASS: ±15dB @ 60Hz BASS: ±15dB @ 60Hz BASS: ±15dB @ 80Hz
MID: ±15dB @ 630Hz MID: ±15dB @ 630Hz LOW MID: ±12dB @ 400Hz
TREBLE: ±15dB @ 6kHz TREBLE: ±15dB @ 6kHz HIGH MID: ±12dB @ 1.2kHz
TREBLE: ±15dB @ 10kHz
SHAPE FILTER: N/A N/A PUNCH: +7dB @ 170Hz, –12dB @ 50Hz
SCOOOP: +2dB @ 125Hz, –13dB @ 650Hz, +2.5dB @ 8kHz
LINE OUT: N/A N/A +8.75dBU (into 600), Maximum Output
HEADPHONE OUTPUT: 110mW into 32/Channel 280mW into 32/Channel 280mW into 32/Channel
SPEAKERS: One 8Ω, 8", Special Design, One 8Ω, 10", Special Design, One 8Ω, 12", Special Design,
Specifications are subject to change without notice. Visit www.fender.com for additional product information.
5XPEOHRQO\
5XPEOHRQO\
5XPEOHRQO\
5XPEOHRQO\
5XPEOH6KRZQ
5XPEOHRQO\
5XPEOHRQO\
3+21(6
+($'
G%
6/((9(*1'
5,1*
7,3
3+21(6
+($'
67(5(2+($'3+21($03/,),(5
63($.(532:(5$03
70
'(/7$&203/,0,7(5
&/,3'(7(&7,21
32:(5$03
$8;,1
/,1(287
+,0,' 75(%/(/20,'%$66
(48$/,=$7,21
$&7,9(
6&223381&+
),/7(56
92,&,1*
92/80(
(1$%/(%/(1'
*$,1
29(5'5,9(
,1387
,1387
