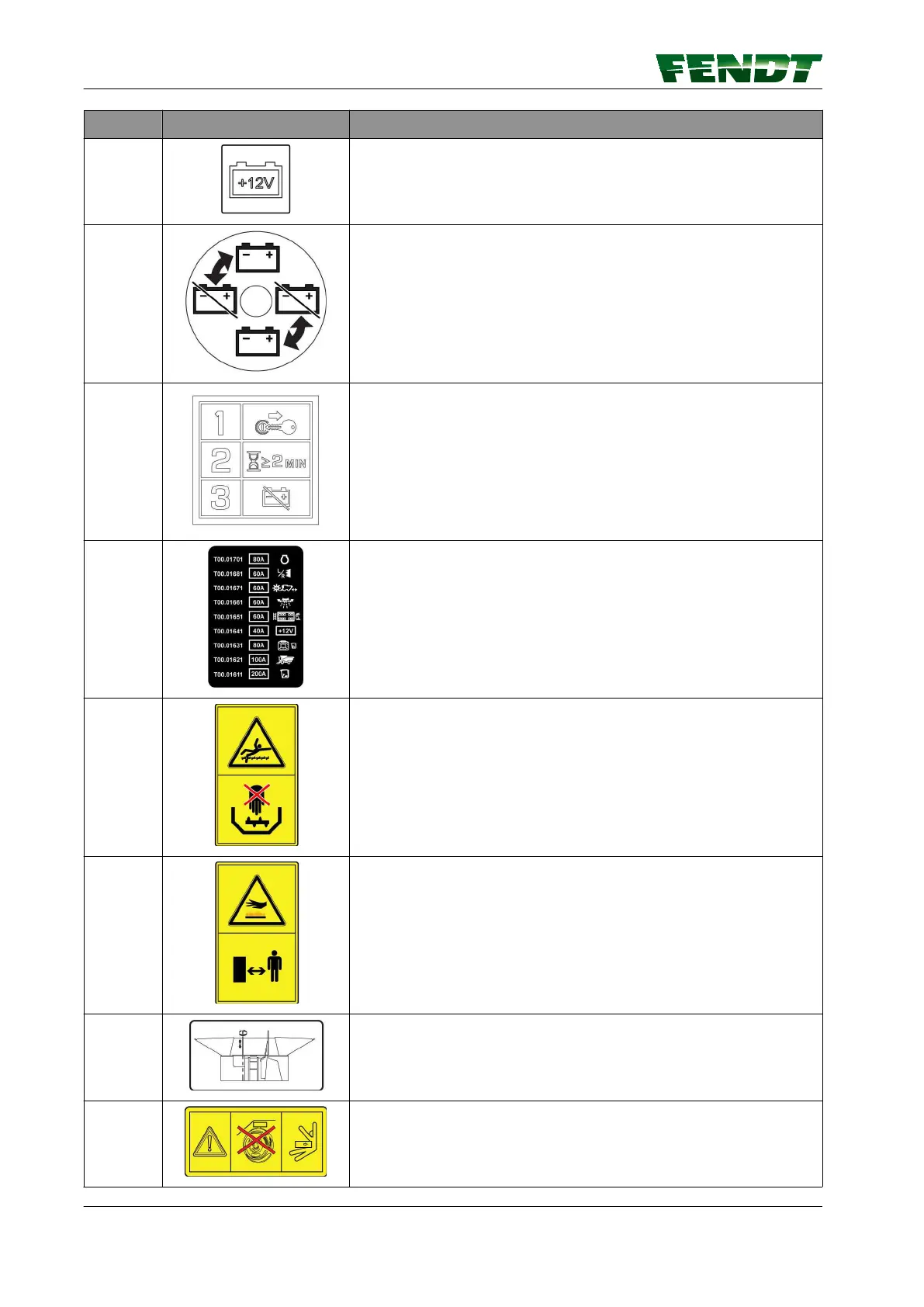

Number Decal Description
25
12 V electrical system
The machine has a 12 V electrical system. Do not start the
machine with a 24 V power supply, injury or death can occur.
26
Primary switch
The location of the primary switch to set all the electrical circuits
on the machine to OFF.
27
Before you disconnect the battery
1. Stop the machine.
2. Wait for a minimum of 2 minutes.
3. Set the primary switch to OFF.
28
Primary circuit fuses
This shows the configuration and capacity of the primary circuit
fuses.
29
Entanglement hazard, rotating auger
Do not reach or go into the grain tank when the engine is
operating.
30
Hot surfaces, burn hazard
Keep a safe distance from hot surfaces.
31
Telescopic handrail
Lift the telescopic handrail into the correct position before you do
the work and maintenance on the top of the machine.
32
Spring at tension
Make sure that the spring in the variator cannot move before you
repair or lubricate the variator.
4
1. Safety
46 IDEAL Series Combine
ACX2738370

FENDT IDEAL Series Specifications

General

Category	Combine Harvester
Manufacturer	Fendt
Series	IDEAL
Engine Type	MAN diesel engine (various models)
Max Speed	40 km/h
Fuel Tank Capacity	1250 liters
Tire Options	Various sizes and types available
Cab Features	Air-conditioned, ergonomic design, multifunctional armrest, touchscreen display
Technology	Fendt Connect (telemetry), guidance systems, yield mapping
Unloading Rate	140 - 210 l/s (depending on model)
Cab	Fendt Vision Cab
Tracks	Available on some models (TrakRide)
