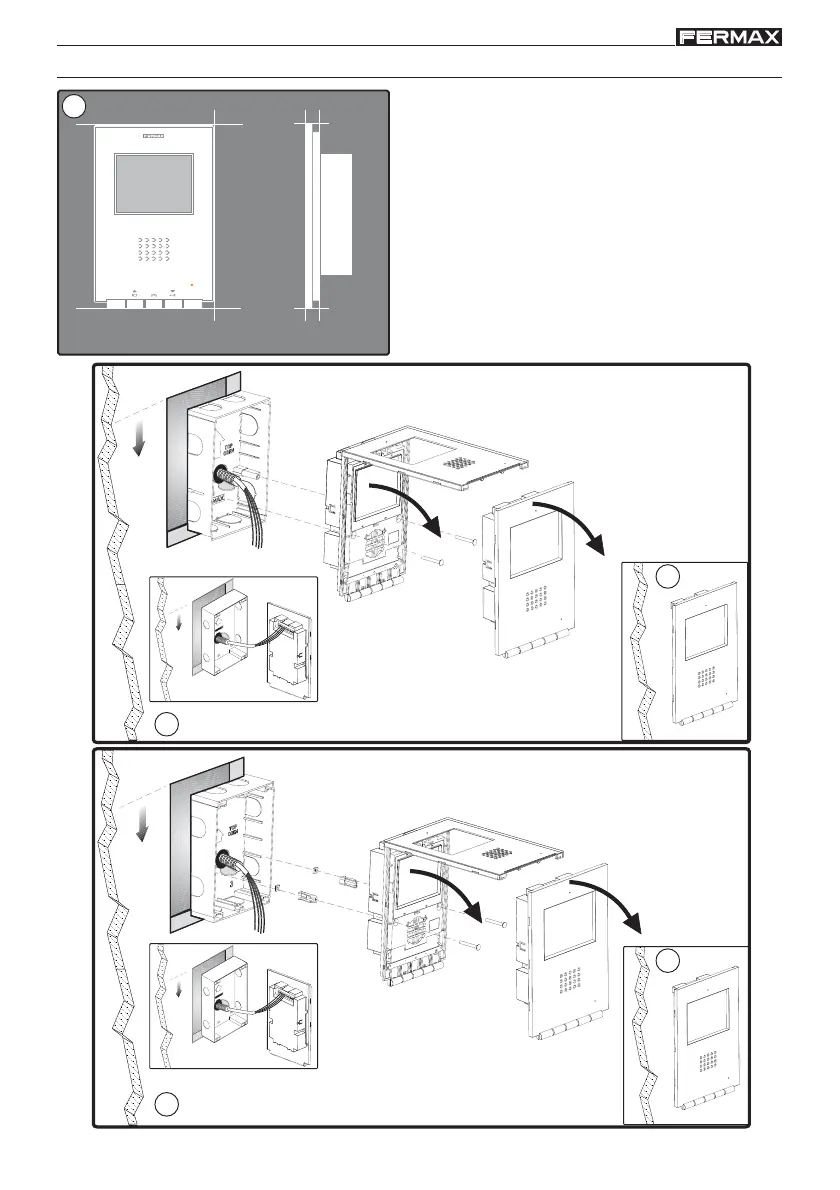

INSTALLING THE MONITOR
197mm
131mm
F1 F2
MENU
14mm
XXmm
1
Dimensions of monitor (Height x Width x Depth*.):
197 x 131 x 60 mm / 7.7” x 5.1” x 2.3”
Dimensions of Fermax box (Height x Width x Depth):
158 x 108 x 45 mm / 6.2” x 4.2” x 1.7”
Dimensions of universal box (Height x Width x Depth):
174 x 114 x 50 mm / 6.8” x 4.5” x 2”
Notes:
- this monitor can be installed in a universal box.
- Depth * : the Monitor depth given here is with Fermax box
1
.6
0m
5
.2
5
fe
e
t
(*)
(*)
1.60m
5.25 feet
(*)
(*)
Installation with FERMAX BOX
2a
Installation with UNIVERSAL BOX
2b
3
3
1.60m
5.25 feet
C
t
+MV
MV
F
1
T
A
+
L-F
2
1.60m
5.25 feet
C
t+ MV
MV
F1
T
A+ L-F2
(*) Remove electrostatic protective tag.
(*) Remove electrostatic protective tag.
