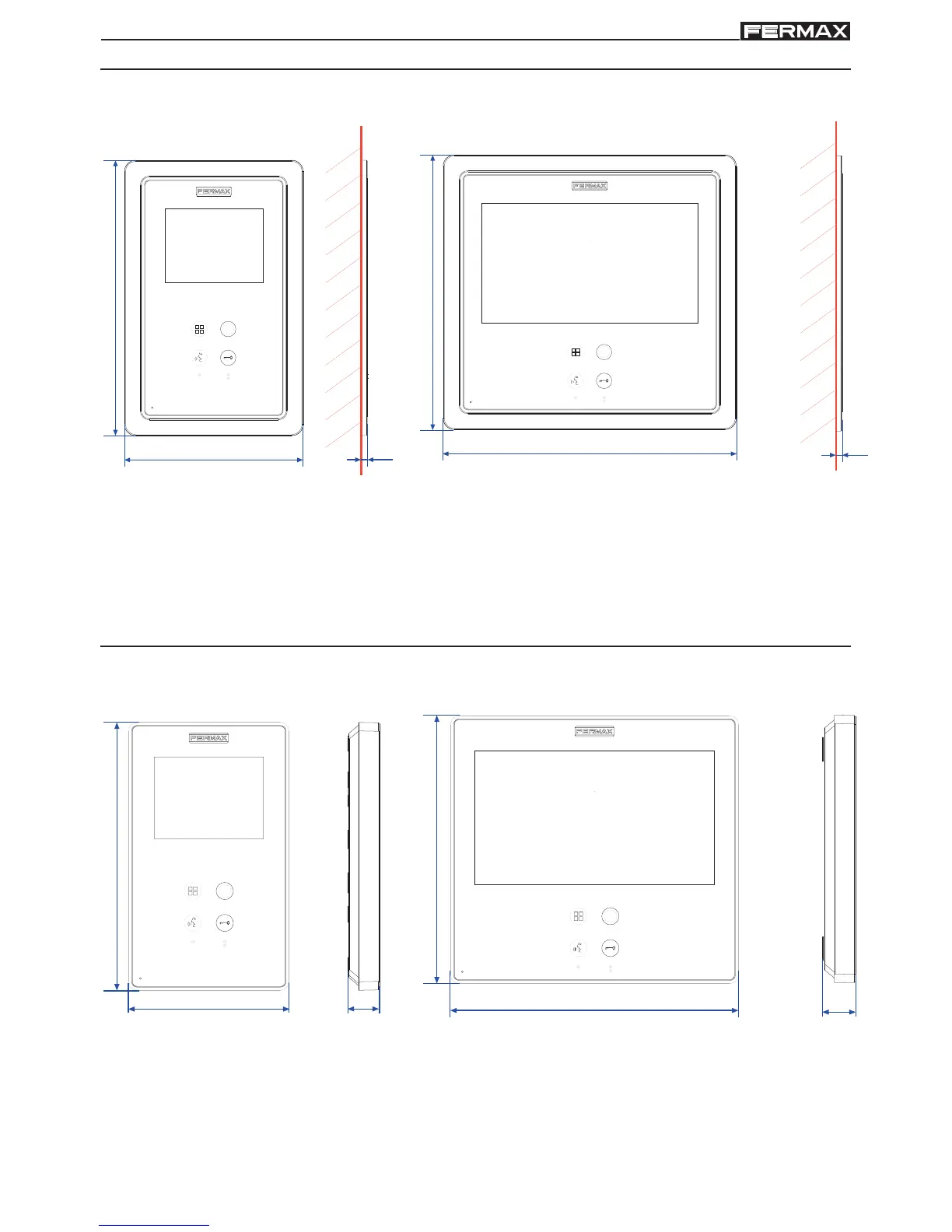

MONITOR MEASUREMENTS: BUILT-IN
127
196
4,5
Measurements in mm.
SMILE 3.5” Monitor
196
4,5
209
SMILE 7” Monitor
Fermax built-in 3.5” monitor ref. 6546 (Height x Width x Depth.):
186 x 116 x 46 mm
Fermax built-in 7” monitor ref. 6551 (Height x Width x Depth.):
186 x 198 x 46 mm
SURFACE MONITOR MEASUREMENTS
Measurements in mm.
103
172
20
185
172
21
SMILE 3.5” Monitor SMILE 7” Monitor
Note:
Does not require a decorative frame. See installation.
