Model 35A Series
5.2 Ergonomic Lifting Positions
● Purpose: Both operators choose the best position
for lifting and lowering the cot.
● Use: Always grasp the cot with both hands, using an
underhand (palms up) grip. For complete instructions,
see Raising and Lowering the Cot, page 19.
Foot-end Operator: Select either the upper or
lower lifting frame (Figure 8)
Head-end Operator:
○ Models 35A and 35A+ Only: Grasp the drop
frame or the safety bar (Figure 8)
○ Models 35A-ST, 35A+ST Only: Grasp the
drop frame (main frame)
5.3 Fastener Release Controls
● Purpose: The fastener release control lever
(Models 35A, 35A+) or fastener release control
handle (Models 35A-ST, 35A+ST) allows the cot
to be released from the cot fastener when unloading
the cot from an ambulance.
● Location: The lever or handle is located near the
cot loading wheels.
● Use: Before using the control lever or handle,
verify that the undercarriage is locked, then release
the cot from the fastener as follows:
○ Models 35A, 35A+: Release the cot from
the safety hook by turning the lever counter-
clockwise (Figure 9).
○ Models 35A-ST, 35A+ST: Release the cot
from the Stat Trac
®
safety stop by squeezing
the release handle (Figure 10).

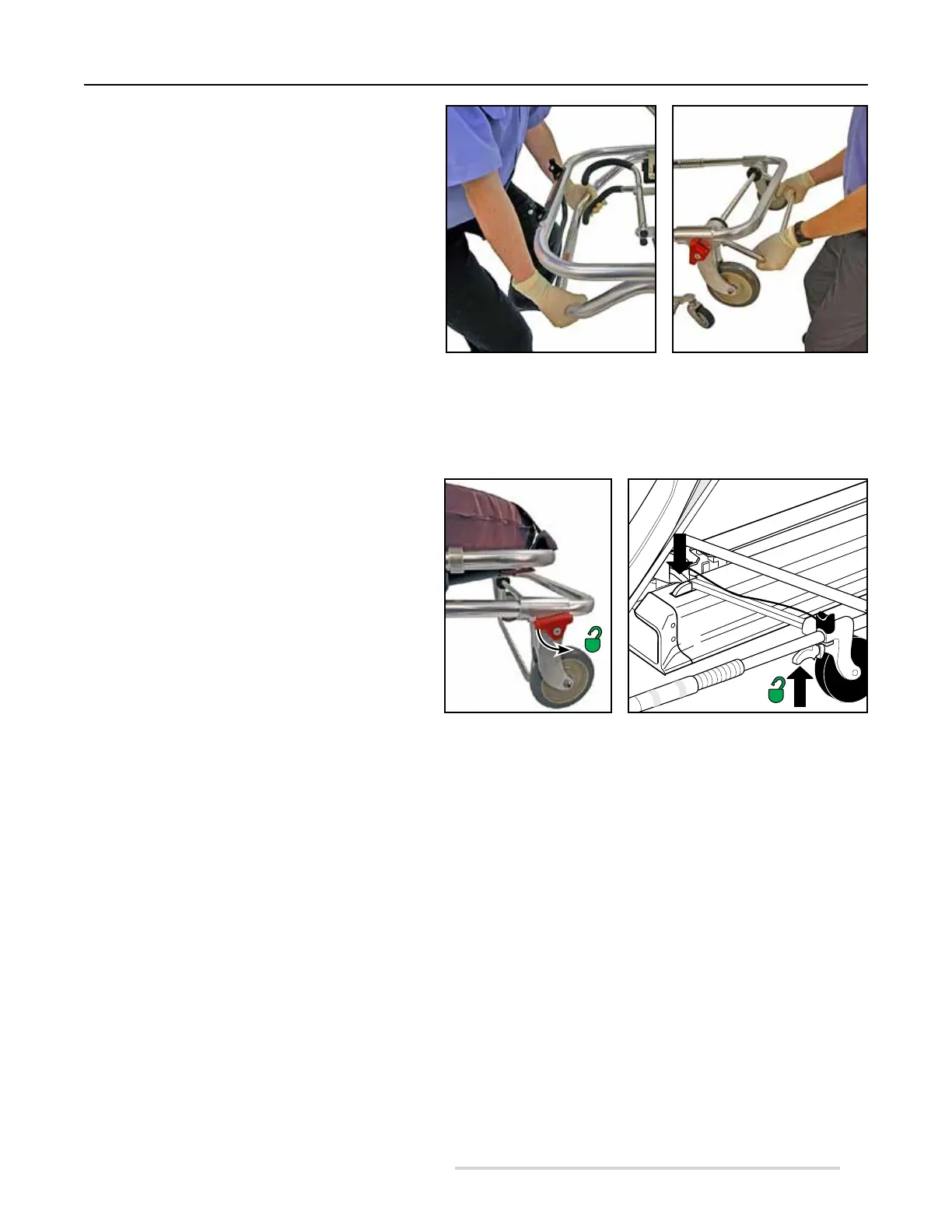

Figure 10 - Release Handle
(Stat Trac® Fastener)
Figure 9 - Release Lever
(Model 175 Fastener)
Using the Features
Figure 8 - Short Operators Grasping the
Lower Lift Frame and Safety Bar
