19
- connect connector no. 31 (negative -) (brown wire) of the socket (B), to the
negative pole of the battery.
Once the connections have been made, before tensioning the electrical system
make sure that:
- the connections have been made as shown in fig. A
- the battery terminal boards are securely tightened
- there are no bare wires

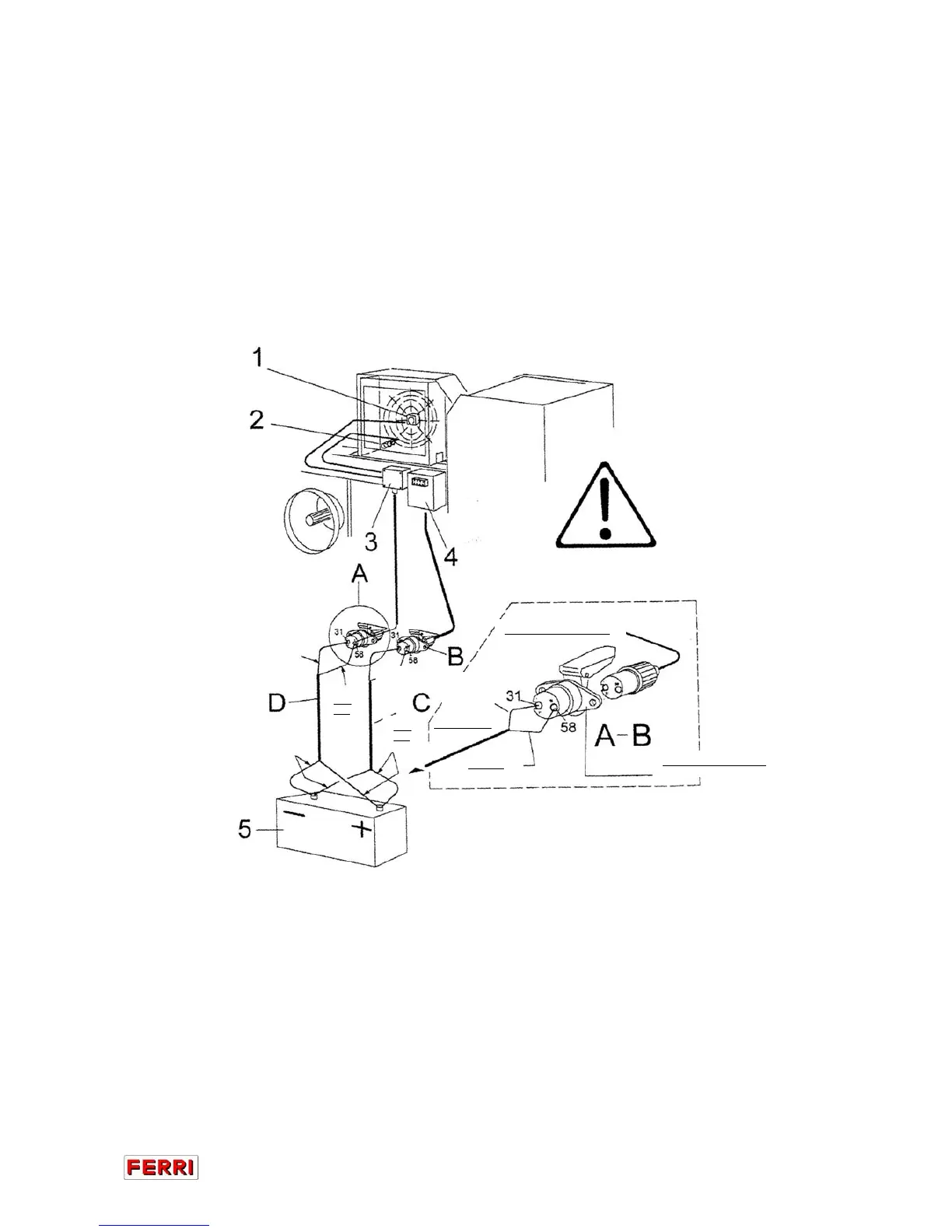

FIG. A
1 Electric fan
2 Thermostat
3 Exchanger electrical box
4 Distributor electrical box
5 Tractor battery
Brown wire
CABLE
CABLE
Brown wire
Brown
wire
Blue wire
Blue
wire
Blue
wire
From Flail hedger mower
To be fixed to the tractor
To the battery
