4.6 Assembling the flail head
The flail head is normally supplied already
fitted to the arm.
It may happen that, for packing reasons or
because it is interchangeable with other
features, that the flail head has to be
assembled afterwards. In this case, proceed
as follows:
- Raise the flail head with the aid of a lift and
place it near the end of the arm.
- Lower the arm so that the tie plate

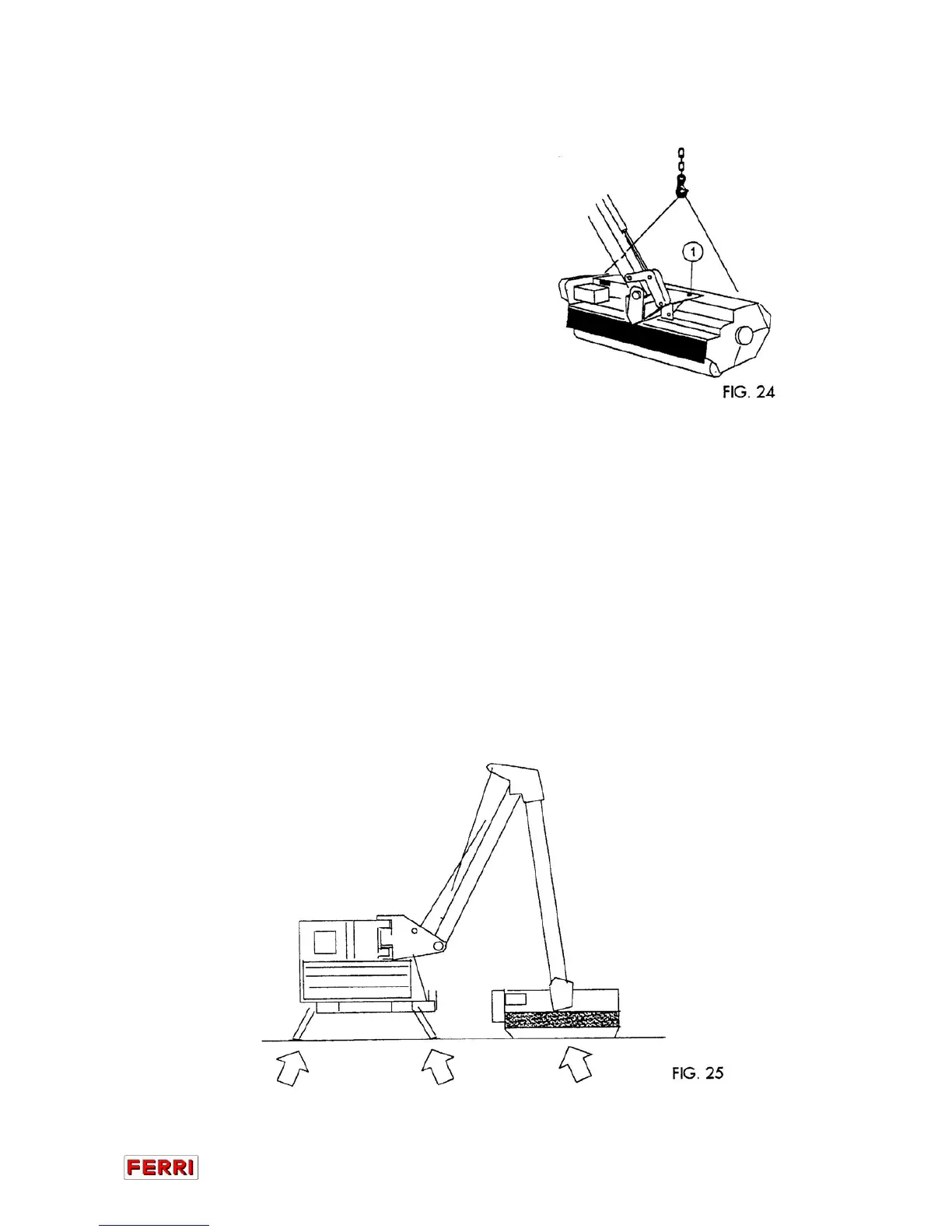

correspond to the flail head (FIG. 24)
- Secure the flail head with the four screws
(1)
- Stop the tractor and take the starting key
out.
- Connect the hydraulic feed of delivery and return pipes to the hydraulic motor,
after exhausting system pressure.
- Connect the leak-off pipe to the hydraulic motor.
- On this occasion, check that all guards are fitted and in good condition.
4.7 Parking
- Park the machine in a safe and quiet place, on flat and firm ground, in order to
prevent the risk of rolling over.
- Remove stabilizers (6) FIG. 15
- Lower the flail hedge mower to the ground with the aid of the hydraulic lift of the
tractor, after lowering and locking the stand, closing the arms and lowering the flail
head to the ground (FIG. 25).
