BLUEHELIX TECH A
51
EN
cod. )5HY
5. TECHNICAL DATA AND CHARACTERISTICS
Table. 9 - Legend - figures cap. 5

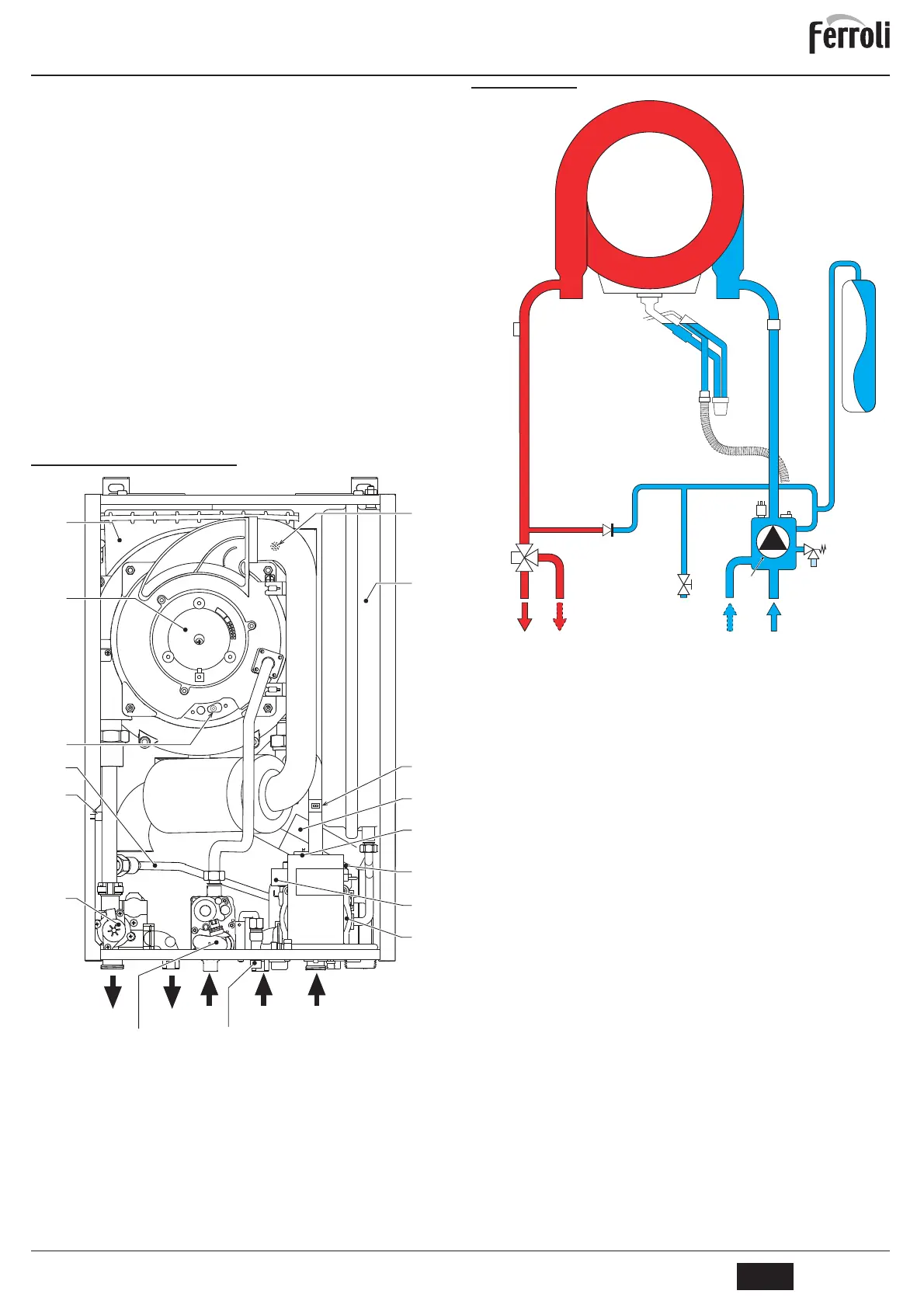

5.1 General view and main components
fig. 27 - General view
5.2 Hydraulic circuit
fig. 28 - Water circuit
256 Modulating heating circulating pump signal
10 209 7 210 11
44
193
32
114
14
36
186
56
191
196
350
81
95
278
340
WILO
74
10 11
14
114
186
278
56
36
193
154
32
74
95
209 210
340
7 Gas inlet
114 Water pressure switch
10 System delivery
138 External probe (optional)
11 System return
139 Remote timer control (optional)
14 Safety valve
154 Condensate drain pipe
16 Fan
155 Hot water tank temperature probe
32 Heating circulating pump
186 Return sensor
36 Automatic air vent
191 Fume temperature sensor
44 Gas valve
193 Trap
56 Expansion tank
196 Condensate tray
72 Room thermostat (not supplied)
209 Hot water tank delivery
74 System filling cock
210 Hot water tank return
81 Ionisation/ignition electrode
278 Double sensor (Safety + Heating)
95 Diverter valve
340 Bypass pipe
104 Fuse
350 Fan/Burner assembly
A ON/OFF switch (configurable)
