Ferroli VTP 15 - Installation; Unit Installation

8
INSTALLATION
UNIT INSTALLATION

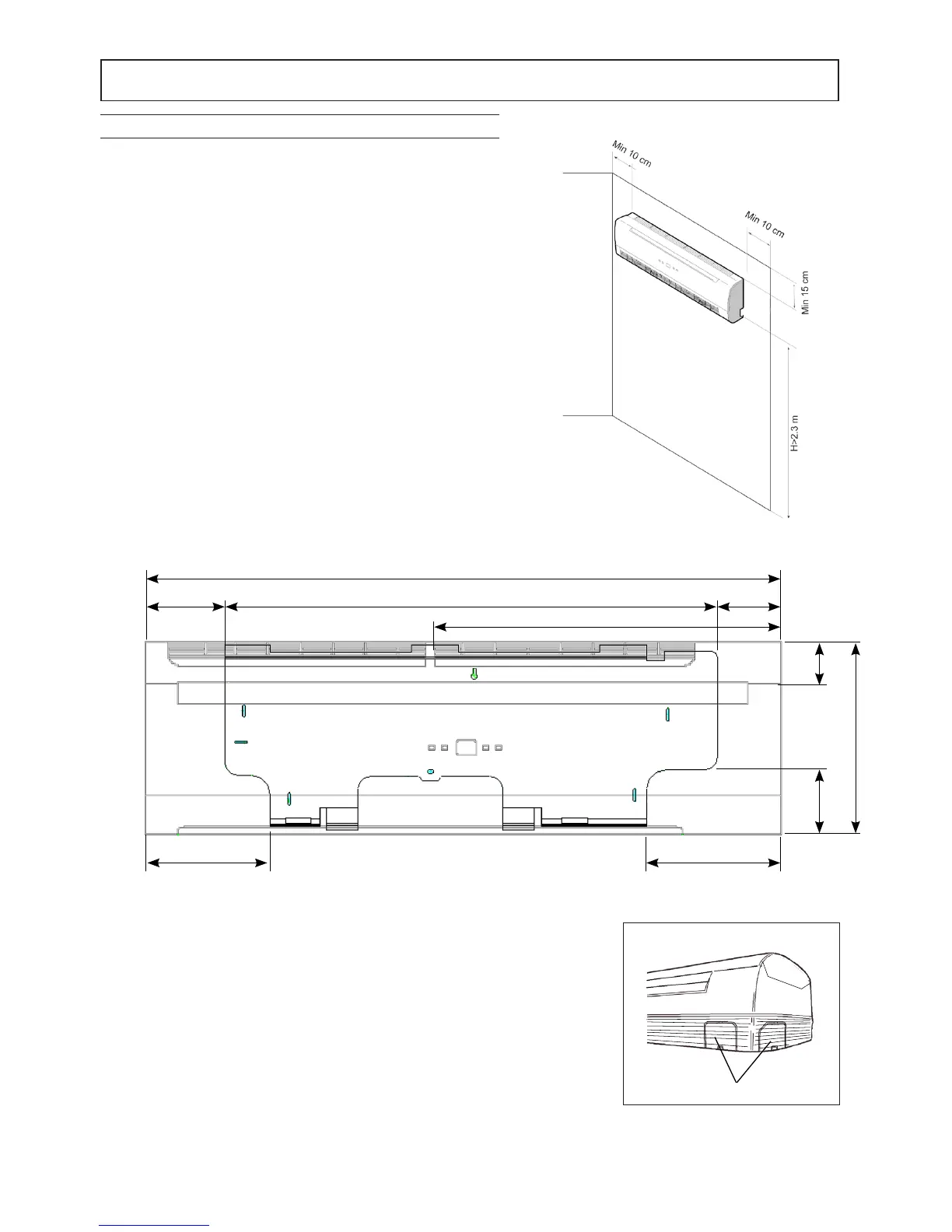

Place of installation Complying with the conditions indicated
opposite (Fig 1), position the unit as low as possible, in any
case ensuring 15cm of free space above it Before carrying
out wall mounting, make sure the wall can take the weight of
the unit, the air flow is not obstructed by curtains, etc, and
that the position is suitable to ensure optimum diffusion of air
in the room
Packing
1 Cut the two nylon straps
2 Open the top part of the packing
3 Grip the unit and lift it completely out of the packing
4 Remove the side protectors and the nylon enclosure
Installation After choosing where to place the internal unit,
use the fixing plate as a template to locate the exact position for
the expansion plugs and for the hole through the wall
The unit's plastic enclosure has knockouts (1 Fig3) which, if necessary, can be
removed for the hydraulic lines and cables
Fig 1
Fig 2
Fig 3
110 172
35 786
434
55
876
300
85 60
